Automatic packing machine

for the pharmaceutical industryhigh-ratewith sealing

Overview The BE4 blister packing machine from Körber Pharma is a modular production platform for packaging highly potent and sensitive medicines. It is designed to support containment, frequent format changes and flexible small-batch to higher-speed production while enabling controlled environmental conditions where required.

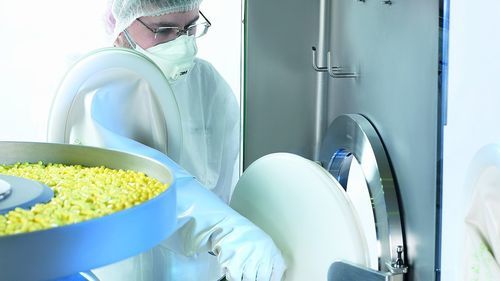

Containment & Safety Containment options for solids range from local extraction to fully closed systems. Features include safe discharge, negative-pressure process control, automatic airtightness monitoring at every product change and hygienically designed dispensing areas to minimise operator exposure and cross-contamination. Climate-controlled packaging (preset temperature and humidity) is available for sensitive biological products.

Platform & Modularity The Blister Expert (BE) platform is fully modular and upgradeable. BE4 supports 1- or 2-lane operation in a compact footprint, enabling scalable configurations from flexible small-batch machines to higher-speed solutions. Design elements simplify format changes, cleaning and digital integration with upstream/downstream equipment.

Benefits (selected)

• Fast change-over: reduced and ultra-light format parts, magnetic clamping and guided change-over services
• Consistent sealing quality: roller/platen sealing with an actively temperature-controlled centre core delivering constant sealing time independent of speed
• High throughput range: 1- or 2-lane operation enabling up to 400 blisters/min depending on configuration
• Hygienic design: dosing area engineered for residue-free cleaning and simplified maintenance
• Process safety: automatic negative-pressure control and airtightness monitoring to prevent exposure and cross-contamination

Technical details Format dimensions (L x W in mm) | Output (Blisters/min) | Operation mode
Minimum: 60 x 30 | Up to 400 | 1-2 lane(s)
Maximum: 296 x 120 | Up to 400 | 1-2 lane(s)
Matches with blister cartoners: P2, P3

Characteristics / technical specifications

• Model: BE4
• Platform: Blister Expert (BE), fully modular and upgradeable
• Output: up to 400 blisters per minute (depending on configuration)
• Operation modes: 1- or 2-lane operation
• Format range (L x W): min. 60 x 30 mm — max. 296 x 120 mm
• Sealing technology: roller/platen sealing with active temperature-controlled centre core
• Containment features: negative-pressure process control, automatic airtightness monitoring, options from extraction to fully closed systems
• Hygienic design: dosing area engineered for residue-free cleaning
• Integration: designed to interface with P2/P3 blister cartoners for downstream packaging
• Applications: small-batch personalised medicines to sensitive biological medicines requiring defined climatic conditions
