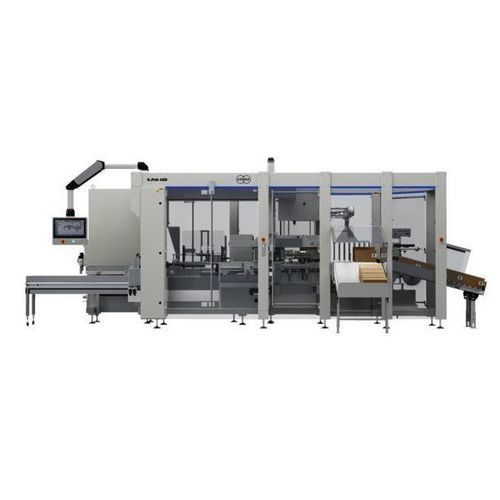

Lateral case packer K.Pak 460

PLC-controlledautomatedfor cardboard boxes

Overview
The K.Pak 400 series provides sideload case packing for cartons or products with precise and reliable handling. Designed for pharmaceutical secondary packaging, the series integrates modular construction and a sanitary-friendly layout to facilitate line integration and regulatory compliance.

Key product statements
Precise, reliable and flexible sideload case packing tailored for pharmaceutical production lines. The K.Pak 400 series is available in multiple models (including K.Pak 460 and K.Pak 465) and is designed for straightforward integration into end-of-line packaging systems.

Your benefits

• Improved throughput: Automated loading and handling reduce manual steps and support consistent cycle times.
• Flexible handling: Compatible with a wide range of carton and case formats to accommodate different secondary packaging needs.
• Compliance focused: Mechanical design and access support GMP and clean-room-adjacent requirements common in pharmaceutical operations.

Technical details – K.Pak 460
Case size (lxwxh mm): Minimum 200x140x100 — Maximum 610x410x400
Carton size (lxwxh mm): Minimum 30x60x15 — Maximum 240x240x120
Output (cases/min): na

Technical details – K.Pak 465
Case size (lxwxh mm): Minimum 200x140x100 — Maximum 610x410x400
Carton size (lxwxh mm): Minimum 30x60x15 — Maximum 240x240x120
Output (cases/min): 12

Downloads (titles available on page)

• Fact sheet: K.Pak 400 Series
• Brochure: Sideload Case Packer

Technical specifications

• Product family: K.Pak 400 series (Sideload case packer)
• Models shown: K.Pak 460, K.Pak 465
• Case size range (examples): min 200x140x100 mm — max 610x410x400 mm
• Carton size range (examples): min 30x60x15 mm — max 240x240x120 mm
• Output examples: K.Pak 465 up to 12 cases/min (K.Pak 460 output listed as not applicable)
• Industry focus: Designed for pharmaceutical secondary packaging with emphasis on compliance and hygiene
• Integration: Designed for seamless integration into end-of-line packaging production lines and PLC-based controls
