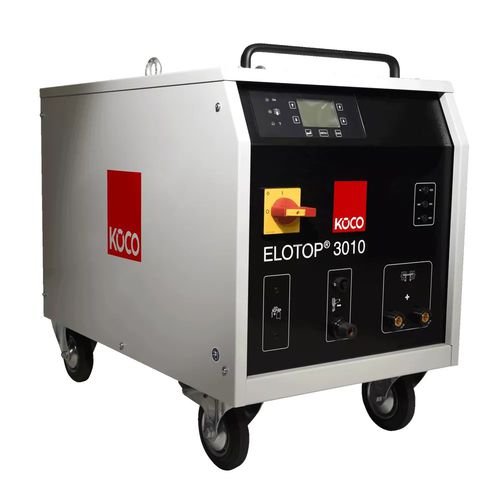

Stud welding system ELOTOP 3010

manual230V single phasethree-phase

With our robust ELOTOP 3010 every welding process super easy! The long-lasting welding machine is suitable for weldable stud ranges between 6-25 mm and allows a maximum current of 3500 A. The time setting range of this lightweight machine is a maximum of 2000 ms and, in addition to safe operation, also offers flexible application possibilities and a robust housing. Benefits • Weldable stud range 6–25 mm • Max. current 3500 A • Max. time 2000 ms • Robust housing Technical information • Stud welding with ceramic ferrule, weld area Ø : 6 - 25 mm • Short-cycle stud welding, weld area Ø : 3 - 12 mm • Shielding gas stud welding, weld area Ø : 3 - 16 mm • Weight : 350 kg • Weld area Ø : 6 - 25 mm • Welding gun connections : 1 pcs • Max. current : 3500 A • Infinitely variable current setting range : 300 - 2600 A • Infinitely variable time setting range : 20 - 2000 ms • Shielding gas pre-flow time : 100 - 2000 ms • Memory capacity : 20 Parameter sets • Max. studs/min. for ... Ø : 50 / 6 ; 6 / 25 mm • Mains connector for 400 V : 125 A • Mains cable : 5 / 16 m/mm² • Slow-blow mains fuse : 80 / 100 A • Mains input power at ...% DC : 8 / 13 / 100 ; 187 / 145 / 52 kVA • Mains voltage tolerance : - 15 / + 6 % • Protection class : IP 23 • Type of cooling : F • Housing dimensions (L x W x H) : 950 x 605 x 860 mm • Handle : 1 • Crane lugs : 2
