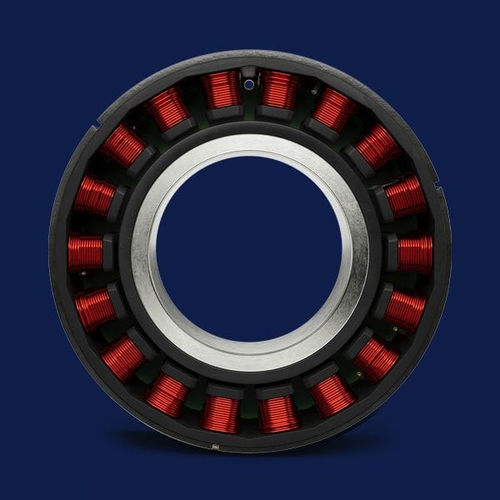

Brushless motor TBM2G series

48 Vframelesswashdown

Are You Ready? It’s time to meet your most demanding design challenges with a higher level of performance, scalability, and design flexibility. TBM2G Frameless Motors (TBM2G) represents years of rigorous R&D, testing and customer feedback. Now, you can bring machine and robotics ideas to life with high-performance torque in the most compact, lightest electromagnetics package possible.Product available worldwide.Performance on DemandScalabilityRobotic DesignFeaturesSpecificationsProduct SelectorDesign ToolsMedia & DownloadsFrameless Torque Motor Performance on DemandThe TBM2G series is ready to perform with high torque in an extremely compact electromagnetics package while integrating advanced materials, windings and flexibility across a wide array of applications.Turn to these high-torque frameless brushless motors for key advantages including:High load carrying capacityEnergy efficiencyFaster movementsGreater smoothness of motionAt virtually all speeds and energy requirements, you’ll find more efficient frameless torque motor performance—all with significantly lower thermal rise.Compact, Precise, ResilientWhen you need the most compact form factor, the most precise motion performance, and the greatest resilience to challenging environmental conditions, embedding a frameless motor can be your best choice.Learn how these motors give you the freedom to design to your specific application requirements — achieving the tightest possible motion integration, eliminating compliant and backlash-prone transmission components, and providing ultimate protection against high-pressure washdown, deep-sea submersion, ionizing radiation, high vacuum and other environmental challenges.Your Next Robotic Design Starts HereThe TBM2G series of frameless motors is the latest addition to Kollmorgen’s full line of robotics motors. Designed for a wide range of demanding applications in industries ranging from medical to aerospace to defense, you’ll find the advanced motors to meet your unique requirements.Explore Our Robotics PageFeaturesSeven frame sizes that meet the most popular embedded equipment and collaborative robot (cobot) designsDesigned for operation at 48 VDC and belowOptional integrated Hall sensors that don’t increase motor lengthMultiple standard thermal sensor options to match the most popular drive options in the cobot marketWindings optimized for speed and torque requirements in 3.5 and 15 kg collaborative robot applicationsDesigned to perform well without exceeding 85°C, but also capable of sustaining full performance at up to 155°C winding temperature on a continuous basis.SpecificationsMechanical Dimensions (mm):FrameOuter DiameterInner Diameter"A" Max"B" REF +/- 0.35"C" +/- 0.080813260813260813260505024.7519.8424.3437.948.212.726.314.7619.2632.86060603017.7122.2135.818.212.726.314.7619.2632.86068683418.3422.8436.448.212.726.314.7619.2632.86076763818.5923.0936.698.212.726.314.7619.2632.860858542.519.3423.8437.448.212.726.314.7619.2632.86094944719.6924.1937.798.212.726.314.7619.2632.8611511557.526.2930.7944.398.212.726.314.7619.2632.86*All dimensions in millimetersPerformance Specifications (selected):ParametersUnitsTBM2G-050xxTBM2G-060xxTBM2G-068xxTBM2G-076xxTBM2G-085xxTBM2G-094xxTBM2G-115xx081326081326081326081326081326081326081326Continuous Torque at StallNm0.270.380.640.450.600.960.630.861.540.891.232.061.211.652.691.582.053.671.903.046.03Rated Speedrpm800080006600800080004400800069003400800056002800750053002600800059002700580049003100Motor ConstantNm/√W0.0610.0820.1280.0870.1140.1760.1190.1570.2510.1560.2010.3240.2030.2710.4190.2630.3310.5280.3100.4640.802Rated PowerkW0.2050.2710.3630.3290.4150.3800.4680.5610.5210.5860.6010.5440.7170.7340.6500.8600.8740.8970.7110.9691.430Design ToolsProduct SelectorsMotioneeringMedia & DownloadsTBM2G Selection GuideTBM2G Frameless Motors BrochureTBM2G Frameless Motors - Robot Ready BrochureProduct available worldwideSeven frame sizesOperation at 48 VDC and belowOptional integrated Hall sensorsMultiple standard thermal sensor optionsWindings optimized for cobot applicationsPerforms up to 155°C winding temperature
