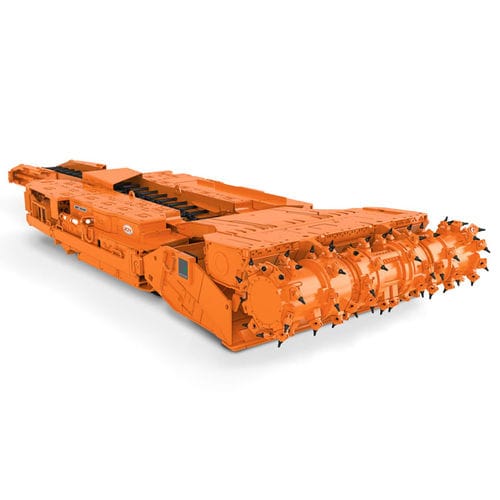

Continuous miner Joy 14CM9

continuous miner
continuous miner
Add to favorites
Compare this product


14CM series Joy 14CM9 Solid-head cutting head system 762 mm (30 in.) conveyor width for narrow entry applications Individual motors with direct-drive transmissions to power the cutter, traction, gathering, and hydraulic systems Remote radio control operations, with different frequencies available for multi-machine sections Outboard access for motors, gearcases, controllers and other major components to reduce downtime and maintenance costs OptiDrive AC traction system to provide smooth transmission responsiveness Faceboss control platform to facilitate an optimal balance of production rate and cost The 14CM9 continuous miner, with a solid-head cutting head system, features a 762 mm (30 in.) conveyor width for narrow entry applications. Traction system The 14CM9 includes our patented OptiDrive AC traction system, which is coupled to a compact, all-gear transmission to provide smooth, reliable service. The cutter motor feedback and the traction differential features optimize sump performance even in the most demanding applications. Finally, the brushless AC traction motors are highly reliable and require minimal maintenance. Cutting system Joy is known worldwide for the highest performing, most reliable cutter head gear cases in the industry. The 14CM9 includes a solid-head cutting head system, with a variety of cutter bit lacing configurations available.
