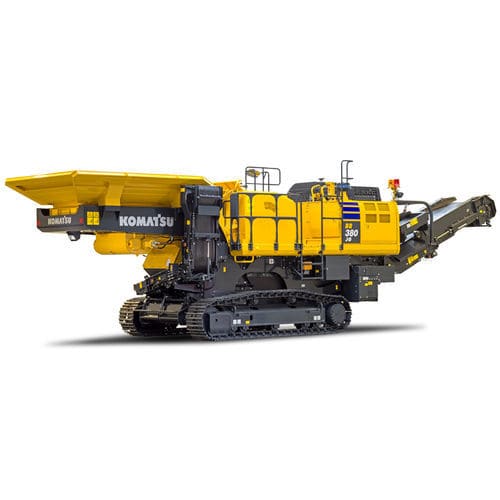

Jaw crusher BR380JG-3

mobilediesel engine

Overview
Building on the BR380JG-1, the Komatsu BR380JG-3 is a mobile jaw crusher designed for quarry and heavy construction use. It features a two-axis deck vibrator that ensures a smooth, continuous feed to highly efficient two-stage grizzly separator bars. The machine targets Net Zero CO2 emissions through a CO2 offset scheme applied to units sold in Europe. Power is provided by a fuel-efficient EU Stage V Komatsu engine delivering 159 kW (213 HP) at 2,050 rpm. The crusher offers a crushing capacity range of 50–240 t/h and an operating weight between 33,500 and 35,310 kg.

Key points

• Net Zero CO2 emissions targeted design with CO2 offset scheme for Europe
• Two-axis deck vibrator for smooth, continuous material flow
• Highly efficient two-stage grizzly separator bars
• Fuel-efficient EU Stage V Komatsu engine, 159 kW (213 HP) @ 2,050 rpm
• Operating weight range: 33,500–35,310 kg
• Crushing capacity range: 50–240 t/h (maximum 240 t/h)

Machine services and support

• KOMTRAX™: Komatsu’s remote wireless monitoring system for tracking machine location, performance and status.
• Komatsu CARE™: Standard initial maintenance program with factory-scheduled service performed using Komatsu genuine parts by Komatsu-trained technicians.

Notes

• Operating weight and crushing capacity depend on machine configuration, options and material characteristics.
• Engine conforms to EU Stage V emissions regulation.

Specifications

• Model: BR380JG-3
• Engine power: 159 kW (213 HP) @ 2,050 rpm (EU Stage V Komatsu engine)
• Operating weight: 33,500–35,310 kg
• Crushing capacity: 50–240 t/h (maximum 240 t/h)
• Feeding system: two-axis deck vibrator feeding two-stage grizzly separator bars for continuous material flow
• Environmental: Net Zero CO2 targeted design with CO2 offset scheme applied to units sold in Europe
• Support: KOMTRAX wireless monitoring and Komatsu CARE maintenance program
