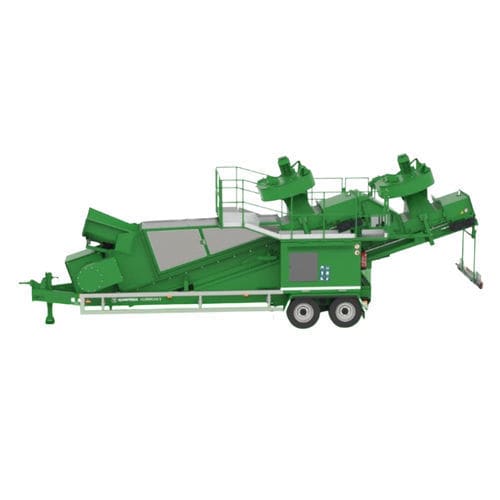

Plastic separator Hurrikan S

airfor the recycling industry

The Hurrikan S wind sifter provides effective removal of plastic film from screen overflow. It works with a patented pressure-suction process that gives the Hurrikan S a separation efficiency of up to 95 percent. Electric drive of all components ensures top efficiency while offering many control possibilities. Magnetic and roller separators can further enhance the quality of the recyclable output. Flexible applicable The standard design of the windsifter is a central axle trailer (tan- dem axle on the S version). A power unit, available as an access-ory, lends the windsifter complete independence from the powersupply. The wide feed chute allows operation in conjunction withfeed conveyor belt width to 1200mm and feed height of 1950mm to 2250mm. High suction performance A radial fan is used to generate a flow of compressed air. The suction/conveying fan has a specially designed rotor that guar- antees smooth throughput. The fan is foldable upwards for servi- cing work, on request a servicing platform makes access easy. The suction performance is adjustable to material byvariation of fan speed, fan distance and vent flaps. Efficient separation The pressure-suction system gives extremely effective removal of light materials from screen overflow. First, the pressure blower separates the material. Light materials settle onto the remaining fraction. ln a second step, the light materials are pulled away by a suction blower. Magnetic and roller separators can further en- hance the quality of the output.
