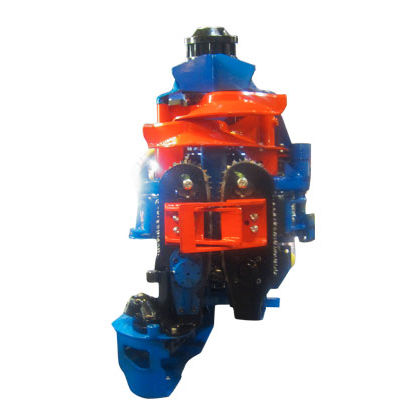

The structure of Keto-51 Eco Processor is based on the Keto-51 Eco Supreme harvester head.
Thanks to its large grapple opening, it serves well as a multi-purpose harvester head that handles delimbing, cutting and sorting easily in mountainous terrains with steep slopes. If necessary, it can also be used for loading. The head has a fixed roller system, which means that there are fewer wearing parts and that the saw is always in a straight position.
Height in felling position 1530 mm
Height in processing position 1600 mm
Width in open position 1100 mm
Width in closed position 790 mm
Length in processing position 1150 mm
Depth in felling position 790 mm
Weight 560 kg
Felling diameter 370 mm
Delimbing diameter 320 mm
Delimbing knives 3
Maximum working pressure 250 bar
Recommended pump capacity 160-220 l/min
Saw bar length 18"
Feeder type Track
Feed force
18 kN
Maximum tree weight
700 kg
Maximum feed speed
4 m/s
Engine power of base machine
60 kW
