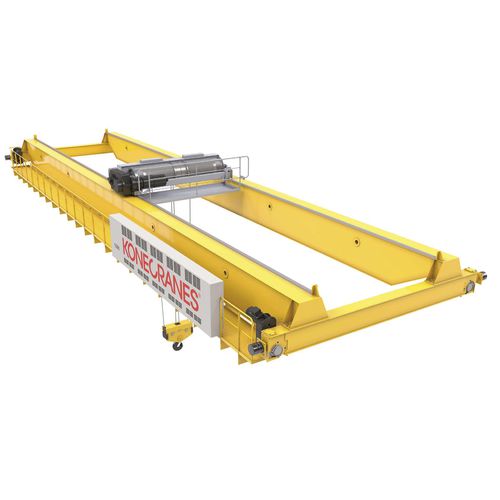

Double-girder overhead traveling crane SM series
heavy-dutyopen winch

double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
double-girder overhead traveling crane
Add to favorites
Compare this product


Characteristics

Type
double-girder
Other characteristics
heavy-duty, open winch
Lift capacity

1,000 t (1,102 us ton)

Lifting speed

Max.: 5,700 mm/min (3.74 in/s)

Min.: 1,200 mm/min (0.79 in/s)

Lifting height

Max.: 111 m (364'02")

Min.: 35 m (114'09")

Description

Toughness in a small package The Konecranes SM crane is a compact, high lifting capacity crane for precise and accurate lifting up to 1,000 tons. The small size of the crane makes it ideal for large and heavy loads in sometimes cramped and hard to access production spaces. This unique combination of lifting power and compact design makes SM crane versatile across all kinds of industrial applications. It can fit into confined spaces that are dangerous or difficult to reach, making it well suited for many industries, but especially for the power industry, where a high level of accuracy and reliability is crucial. Optimized working area and ease of use The extremely compact design of the SM trolley leads to minimized approach dimensions and headroom requirements. Compared to other trolley types, the SM crane gives you a reduction in the structural requirements of rails, runway beams and columns, and in the overall height of the building. Compact design and economy of space can give you streamlined production areas, smaller buildings, and bigger cost savings. By closely following the latest advances in industrial machinery handling processes, the SM crane has been designed to make the operator’s work easier. Crane speed control is more precise, and the work area has been optimized. Improved load positioning and accuracy with inverter control makes the crane easier to operate. Ergonomics and comfort have also improved significantly. Combining heavy lifting, safety and precision
