electric chain hoist / variable-speed / single-girder
CLX series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
electric chain hoist electric chain hoist - CLX series
{{requestButtons}}

Characteristics

  • Operation:

    electric

  • Other characteristics:

    variable-speed, single-girder

  • Capacity:

    5,000 kg (11,023.1 lb)

  • Speed:

    Max.: 20,000 mm/min (13.1 in/s)

    Min.: 700 mm/min (0.5 in/s)

Description

Our best chain hoist yet

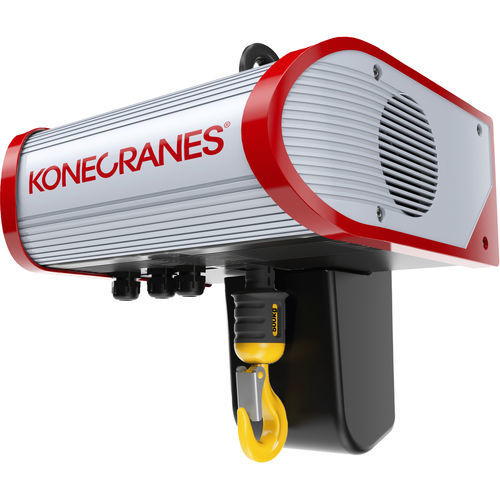

The latest CLX electric chain hoist from Konecranes has been designed to speed up work cycles, enhance safety and extend service life. It is extremely versatile and durable, making it ideal at a demanding workstation. The CLX can lift up to 5,000 kg.

Its robust aluminium frame is accompanied by a maintenance-free gearbox and patented five-tooth chain sprocket with intermediate teeth that allows quiet operation and gives longer chain life. Using oil lubrication, the gearbox lowers operating temperature, which increases power. The 6:1 speed ratio enables movement that is fast and precise, with a corresponding improvement in work cycles.

Designed for safety and easy maintenance

The Konecranes CLX electric chain hoist has been improved to promote crane safety and a longer service life. Safety is enhanced with features such as a hoist limit switch, securing brake and hook block. In addition, the brake and slipping clutch are designed to prevent the load from dropping or micro-slipping.

Downtime has been minimised with easy serviceability and simple maintenance access. The new self-adjusting magnetic brake is designed so that no adjustments are required over the lifetime of the brake, and with plug-in connections, the components of the hoist are easy to replace.
