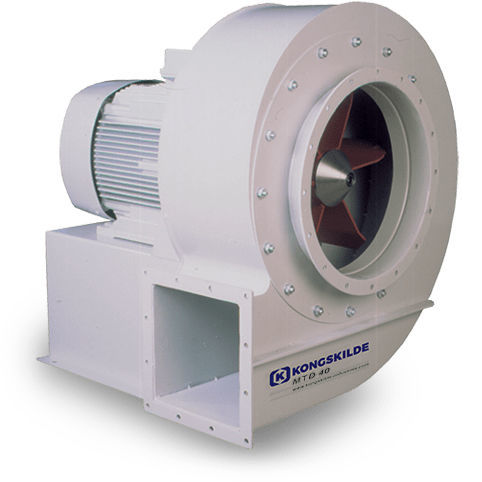

Air blower MTD seriescentrifugalsingle-stageconveying
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- conveying
- Flow
Max.: 10,400 m³/h
(367,272.53 ft³/h)Min.: 1,000 m³/h
(35,314.67 ft³/h)- Nominal power
Max.: 22 kW
(29.912 hp)Min.: 1.1 kW
(1.496 hp)- Sound level
Max.: 84 dB
Min.: 74 dB
- Weight
Max.: 283 kg
(623.91 lb)Min.: 41 kg
(90.39 lb)- Length
Max.: 1,150 mm
(45.28 in)Min.: 850 mm
(33.46 in)- Height
Max.: 1,295 mm
(51 in)Min.: 995 mm
(39.2 in)
Description
Kongskilde MTD Blowers are designed for handling material. The MTD series is equipped with a self-cleaning rotor, 6 backward curved blades, and an aerodynamic inlet. The rotor is statically and dynamically balanced to ensure maximum airflow and efficiency. The MTD blower rotors are constructed in 4mm steel plate for MTD 20-22-25-30 and in 5mm steel plate for MTD 35 and MTD 40.
Benefits
Suited for both indoor and outdoor installation
Low power consumption
MTD Sound Enclosures and Noise Reduction
If noise reduction is required, the MTD blower series can be built into a sound enclosure which will reduce the noise produced significantly.
Constructed with 1.25mm galvanized steel plates on the outside.
Insulated with noise-absorbing material which is also fire retardant.
Standard equipped with a cooling fan.
