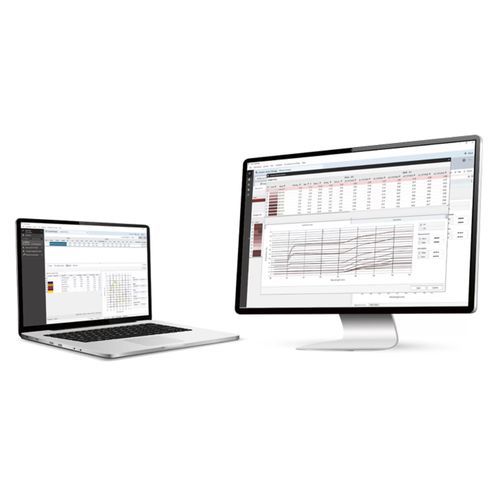

Data management software package SpectraMagic™ CMS

calculationreportingcolor matching

Product overview
Konica Minolta's SpectraMagic™ CMS is color-matching and formulation software designed for fast, precise formulation of plastics, coatings and inks. It combines advanced matching algorithms with direct integration to Konica Minolta spectrophotometers to support reproducible results in laboratory and production environments.

Key benefits

• Improve first-shot accuracy
• Reduce formulation cycles and rework
• Enhance batch-to-batch consistency
• Optimize raw material usage
• Increase overall productivity

Features

• Advanced algorithm for opaque and translucent color matching
• Local Delta E function for higher precision on difficult matches
• Simultaneous calculation of color and hiding power (opacity)
• Intelligent batch correction using real pigment performance data
• Continuous learning from laboratory and production samples
• User-friendly GUI and streamlined workflow

Compatible instruments
CM-3700A Plus, CM-3700A*1, CM-36dG/CM-36d/CM-36dGV, CM-26dG/CM-26d/CM-25d, CM-17d/CM-16d, CM-700d*1/CM-600d*1, CM-5*1, CM-3700A-U Plus, CM-3700A-U*1, CM-3600A

Measurement & calculation capabilities
Observer: 2°, 10°
Color system / color space: L*a*b*, L*C*h
Indices: Metamerism Index, Contrast Ratio, GU
Color difference formulas: ΔE*ab (CIE1976), ΔE00 (CIE DE2000), ΔE*94 (CIE1994), CMC
Illuminants supported: A, C, D50, D65, F2, F11, D55, D75, F6, F7, F8, F10, F12, U50, ID50, ID65, LED-B1..B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

Detailed functional features

• Measurement: reflectance, SCI, SCE, simultaneous SCI/SCE, gloss measurement, viewfinder on selected instruments, manual averaging
• Calculation modes: color only; simultaneous color and hiding power; formulation for opaque, semi-transparent and transparent finishes with thickness considered; leftover-material formulation
• Data set creation (Full version): absorption and scattering coefficient calculation per material; material priority settings; forbidden-combination settings
• Formulation calculation: template creation, priority-based formulation, scoring and sorting, hybrid theoretical/measured-data matching, automatic base selection
• Correction calculation: batch correction, new correction, formulation history management
• Data: database connectivity, PDF report output, CxF export

Editions & capabilities

• SpectraMagic™ CMS Full: full dataset creation, colorant definition, batch correction, leftover management, database and user management, history-based data utilization
• SpectraMagic™ CMS Standard: core formulation and correction features, leftover management, database function (limited user management and colorant definition)

System requirements
OS: Windows® 11 Pro
CPU: Intel® Core i5 2.7 GHz or higher (recommended)
Memory: 8 GB or more (16 GB recommended)
Storage: 20 GB or more free space
Display resolution: 1920×1080 or higher recommended
Other: USB port required for dongle version; external network connection for activation; Database: PostgreSQL 15 or later

Advanced integration & support

• Seamless integration with Konica Minolta portable and benchtop spectrophotometers for reliable data transfer
• Dedicated colour help desk and support for laboratory and production formulation challenges

Integrated colour management solution

• Clear pass/fail results
• Efficient organisation of large datasets
• Custom report creation

Technical specifications

• Product name: SpectraMagic™ CMS
• Compatible instruments: CM-3700A Plus; CM-3700A*1; CM-36dG/CM-36d/CM-36dGV; CM-26dG/CM-26d/CM-25d; CM-17d/CM-16d; CM-700d*1/CM-600d*1; CM-5*1; CM-3700A-U Plus; CM-3700A-U*1; CM-3600A
• Observers supported: 2°, 10°
• Color spaces: L*a*b*, L*C*h
• Indices: Metamerism Index, Contrast Ratio, GU
• ΔE formulas: CIE1976 (ΔE*ab), CIE DE2000 (ΔE00), CIE1994 (ΔE*94), CMC
• Measurement modes: Reflectance, SCI, SCE, simultaneous SCI/SCE, gloss, manual averaging, viewfinder (selected instruments)
• Formulation: opaque, semi-transparent, transparent finishes; thickness-aware calculation; leftover-material utilization
• Correction & QC: Batch correction; formulation history; integration with SpectraMagic™ NX2 for QC
• Data & export: Database connectivity; PDF report output; CxF export
• Editions: Full and Standard
