Liquid-tight conduit FSH seriesprotectioncorrugatedfor cables
Add to favorites
Compare this product
Characteristics
- Type
- protection
- Structure
- corrugated
- Applications
- for cables
- Material
- stainless steel
- Protection level
- halogen-free, UV-resistant, liquid-tight, self-extinguishing, IP67
- Other characteristics
- flexible, high-temperature, coated with rubber
- Diameter
Min.: 13 mm
(0.5 in)Max.: 52 mm
(2 in)- Temperature
Min.: -50 °C
(-58 °F)Max.: 130 °C
(266 °F)
Description

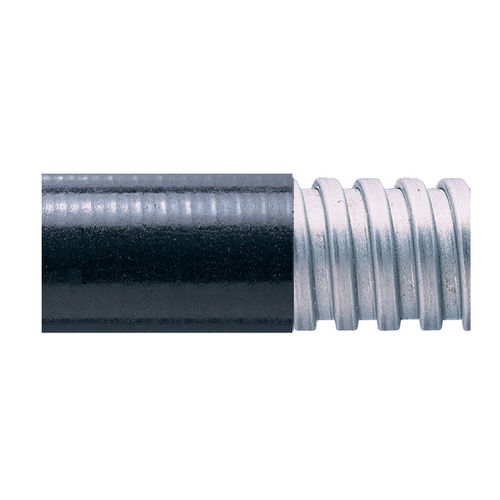

Stainless steel, high temperature - liquid tight conduit
Stainless Steel Core - String packed with thermoplastic rubber covering
Flame dies in less than 30 seconds after ignition source is removed
Temperature range - Static applications: -50ºC to +130ºC
Temperature range - Dynamic applications: -5ºC to +130ºC
Up to IP67 rating (with appropriate fitting)
High UV resistance
High flexibility - high fatigue life
Halogen free
Self extinguishing
Typical applications
Utility - Power Generation
Rail Traction – low temperature flexing
