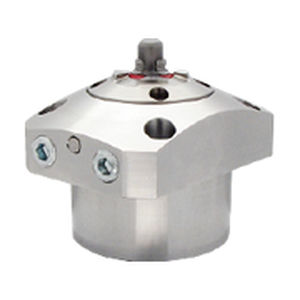

Pneumatic clamp SWA

workpiecemachiningdouble-acting

・Grips the workpiece hole and pulls on to seating surface Z-axis. ・Possible to machine 5 faces except clamping face. ・Zero interference provides better machining process and simple tool path. ・Compact integrated clamping function and seating surface Z-axis provides easy design and simple fixture. • To Workpiece • Zero interference with 5 faces except clamping face. • Possible to use standard length tool calls for better machining accuracy. • Possible to enhance cutting parameters which leads to shorter cycle times. • To Machining Equipment • Fixture could be extremely downsized. • Turn-table could bedownsized. • The movement of tool could be shorten. • For saving weight of fixture • Machining facility could be more simple. • Good design for easy flow of chips and reduction in coolant usage. • To Machining Line • 5 faces machining makes it possible to put process together. • Machining line is kept small and simple. • Possible to enhance cutting parameters which leads to shorter cycle times. • To Transfer Equipment • Hand part can be compact and light. • Transfer equipment can be compact.
