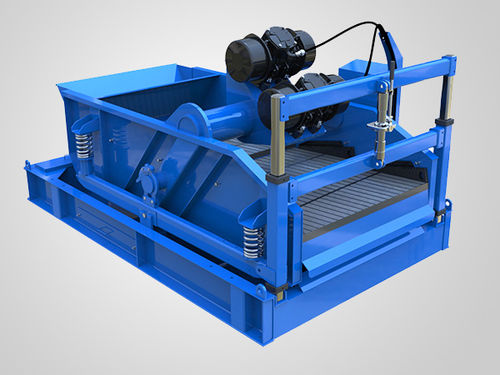

Process sieving machine

linear vibratingsolid/liquid

The shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment. Kosun patented shale shakers is the equipment with welded structure and can be the good replacement of derrick shale shaker and shale shaker parts. Vibration motor & screen plate base are installed into screen basket with special parts. Screen basket is fixed on the adjustment beam. At each of the four vertexes of the screen basket put a vibration damping spring, which can prevent the adjoining parts and devices from being affected by the vibration. Features of Kosun's Linear shale shaker: a. G-forces linear motion up to 7.4 G ( adjustable depending on the situation ) b. Hi-speed conveyance of cuttings c. Higher processing capacity d. Able to process heavier solids loads e. Enhances cuttings processing volume f. AWD device is adjustable from -1°~5° g. Single side shale shaker screens tension system to easily change the screens h. Shale shaker feeder can be weir feeder or box feeder Linear Motion Shale Shaker of Kosun is especially effective while drilling top-hole sections where heavy and high-volume solids are usually encountered. In these intervals, shakers may generate powerful G-forces and its effective vibrating motion can quickly remove the dense solids from screens and particles from wells.
