Standard bucket 78 VZV Series
for forklift trucksweldedHB400

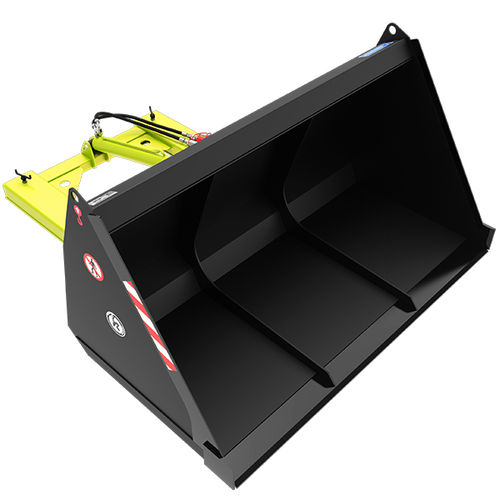

Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 2
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 3
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 4
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 5
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 6
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 7
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 8
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 9
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 10
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 11
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 12
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 13
Standard bucket - 78 VZV Series - KOVACO, spol. s r.o. - for forklift trucks / welded / HB400 - image - 14
Add to favorites
Compare this product

Characteristics

Type
standard
Load-bearing
for forklift trucks
Cutting edge / teeth type
welded
Cutting edge / teeth hardness
HB400
Other characteristics
for light materials
Carrier weight

Min.: 1,500 kg
(3,307 lb)

Max.: 10,000 kg
(22,046 lb)

Bucket width

Min.: 1,400 mm
(55 in)

Max.: 2,500 mm
(98 in)

Capacity

Min.: 0.5 m³
(17.66 ft³)

Max.: 1.5 m³
(52.97 ft³)

Bucket weight

Min.: 310 kg
(683.43 lb)

Max.: 680 kg
(1,499.14 lb)

Hydraulic flow

Min.: 20 l/min
(5.28 us gal/min)

Max.: 100 l/min
(26.42 us gal/min)

Hydraulic pressure

Min.: 160 bar
(2,320.6 psi)

Max.: 240 bar
(3,480.91 psi)

Description

Large Volume Bucket for Forklift The Large Volume Bucket for a Forklift is used to move light loose materials such as grain, wood chips and other loose material. Benefits - The bucket blade is made of hardox - Option to attach a replaceable hardox edge to the fixed one with screws - High work efficiency - Reliable and strong construction You can find more information in the attached technical datasheet. WHEN SUBMITTING YOUR INQUIRY PLEASE SPECIFY THE TYPE OF MACHINE ON WHICH THE PRODUCT KOVACO WILL BE MOUNTED.
