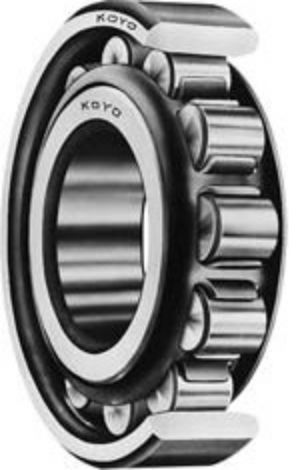

Cylindrical roller bearing NJ214C3 JP

single-rowsteelfor mining and the metallurgical industry

Product overview
Cylindrical roller bearing NJ214C3 JP designed for high radial load capacity. Dimensions: inner diameter d = 70 mm, outer diameter D = 125 mm, width B = 24 mm.

Design and performance
Cylindrical rollers with line contact between rollers and raceway provide high radial load capacity and good performance under shock loads. Rollers are convex-profiled to reduce contact stresses and friction, allowing operation at higher speeds. Available as single-row, multi-row (two- or four-row), with parallel or tapered bores and with lubrication holes or grooves where specified. Precision classes available include RBEC-5.

Materials and heat treatment
Most bearings are manufactured from low-carbon or alloy rolling bearing steels. Applications requiring higher surface hardness use case-hardened or through-hardened high-carbon bearing steel, using induction or conventional heat treatments to obtain a hardened running surface and ductile core.

Dimensions and selection data
The bearing bore and outer diameter are key selection criteria. Metric bore designation uses a code system: for bore codes 04 and above multiply the code by 5 to obtain the bore diameter in millimetres. Other relevant data: total width, reference speed (oil), static and dynamic axial and radial load ratings.

Applications

• Mining and aggregate processing
• Oil and gas
• Power generation
• Gearboxes, drives and heavy machinery
• Pulp and paper, cement, crushers, mixers

Maintenance and handling
Bearings are commonly oil-lubricated, which also serves for cooling. Split inner and outer rings facilitate installation and removal. Correct lubrication and alignment prolong service life.

Technical information

• Model: NJ214C3 JP
• Item no.: A0000002006
• Inner Ø (d): 70 mm
• Outer Ø (D): 125 mm
• Width (B): 24 mm
• Weight: 1.2779 kg
• Country of manufacture: JP (Japan)
• Manufacturer: JTEKT Sales Europe B.V.

Features

• Number of rolling element rows: single-row
• Rolling element material: bearing steel
• Internal clearance: C3
• Cage material: FY - brass cage
