Planetary gearbox bearings

Outside diameter: 10 mm - 150 mm

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row ...

Outside diameter: 80 mm - 2,000 mm

These bearings carry radial load only and can accommodate both expansion and contraction. The relative axial displacement of one ring to the other occurs with minimum friction while the bearing is rotating. ...

Outside diameter: 65 mm - 1,050 mm

... standard and specially designed single-row cylindrical roller bearings in a wide range of configurations and series for your application requirements. Our EJ series steel cage bearings available in ...

Inside diameter: 12.7 mm - 1,270 mm
Outside diameter: 35 mm - 1,435 mm

Inside diameter: 20 mm - 1,250 mm
Outside diameter: 47 mm - 720 mm
Width: 15 mm - 165 mm

Inside diameter: 25 mm - 500 mm
Outside diameter: 47 mm - 680 mm
Width: 16 mm - 170 mm

Inside diameter: 1 mm - 9 mm
Outside diameter: 3 mm - 30 mm
Width: 1 mm - 10 mm

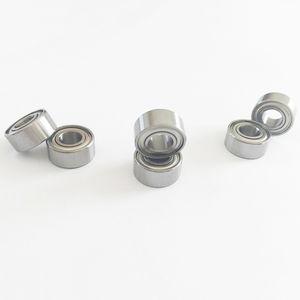

Miniature bearings are called instrument bearings. Its compact size and outstanding performance characteristics make it an important component of many industries. They are used in various applications ...

Inside diameter: 10 mm
Outside diameter: 800 mm

Angular contact bearings have similar construction to deep groove bearings except for the specific track geometry to withstand combined radial and axial loads. General Features In the single-row version ...

Inside diameter: 10 mm
Outside diameter: 800 mm

Cylindrical roller bearings or needle roller bearings can be single- or multi-row, full complement or caged. General Features Roller and needle roller bearings can withstand only radial ...

Inside diameter: 100 mm - 1,800 mm
Outside diameter: 150 mm - 2,000 mm
Width: 50 mm - 462 mm

Spherical roller bearings have two rows of symmetrical barrel rollers that rotate on a single spherical raceway in the outer ring. The two inner ring raceways are inclined at an angle to the bearing axis. Because ...

Inside diameter: 170 mm - 1,240 mm
Outside diameter: 350 mm - 1,540 mm
Width: 80 mm - 140 mm

... interchangeability of the bearings themselves. Therefore, in the design of a machine, it is preferable, when possible, to adopt standard bearings. EVOLMEC, according to the type of machinery and the type ...

... Deep groove ball bearings, Angular contact ball bearings, Radial cylindrical roller bearings (with radial cage and full complement), Spherical roller ...
