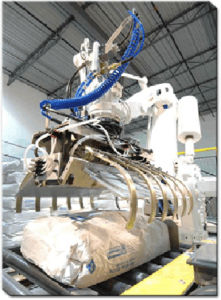

Robotic palletizer

bagcasehandling

System Highlights • A unique bag transfer mechanism to positively transfer heavy, paper or plastic bags from filler conveyors (wide edge leading) to the main trunk transport conveyor (short edge leading to the robot palletizing cells). This machine can handle a variety of heavy bags and sizes. • A means to identify bags using a non-contact UV ink application, detection and verification system, thereby uniquely identifying bags according to originating filling station. • A robot end-of-arm tooling to not only provide bag squaring at pickup and transport, but properly place and release bag to maintain pallet stack perimeter dimensions within the pallet dimensions. • Dynamic (not using fixed program offsets) pallet height analysis from the robot end of arm tooling after each pallet tier completion. This ensures that the robot is instructed as to the actual pallet stack height given the variability in bag fill density (and therefore bag thickness dimensions for the same product SKU). • Non specialized integrated components utilized standard industry manufacturers, such as Hytrol (belt, roller conveyors) and ABB (IRB 660 palletizing robots). • Capability to handle plastic bag products with alternate robot end of arm handling tool. Turnkey robot selection with state-of-the-art end-of-arm tooling and product delivery systems are key ingredients of a fully functional and optimized material handling system for product palletizing. Tertiary packaging systems are using robots to a greater extent in providing flexible solutions, especially with difficult to handle cases and/or bags.
