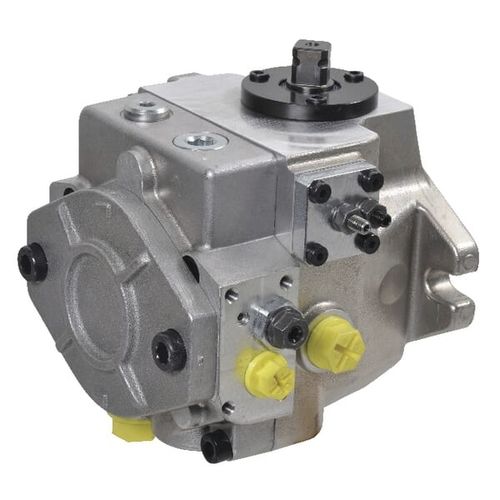

Hydraulic piston pump KCLPC118L002hydraulically-operatedmetalfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- hydraulically-operated
- Material
- metal
- Applications
- for industrial applications
- Other characteristics
- compact, adjustable, standard
- Pressure
210 bar
(3,046 psi)- Speed
Max.: 3,600 rpm
(22,619 rad.min-1)Min.: 700 rpm
(4,398 rad.min-1)
Description
Unit
-
Each
-
Specifications
-
We do not keep this anti-clockwise pump in stock as standard. However, it can be delivered within 2 days. Please contact our product specialist to order this item.
-
Benefits
-
Compact design
Through connection possible
Multiple pump control options
-
Application
-
Transmission
High flow at medium pressure
For use as a fertiliser pump, winch drive, mobile applications and much more
-
Technical information
-
Robust housing
Adjustable maximum stroke count
-
Max peak pressure [bar]
-
270
-
Rotation max.
-
3600 r/min
-
Rotational speed min.
-
700 r/min
-
Veer
-
210 BAR
-
Nominal pressure
-
210 BAR
-
Control
-
Manual control with automatic zeroing
-
Through shaft options
-
SAE A = Z9-16/32 DP with charge pump
-
Shaft type
-
Splined Shaft T9-16/32-DP SAE A
-
Stroke volume
-
18 cm³/rev
