Steel trench shoring system KSECKboxmanhole
Add to favorites
Compare this product
Characteristics
- Specifications
- box, steel, manhole
Description
Product description

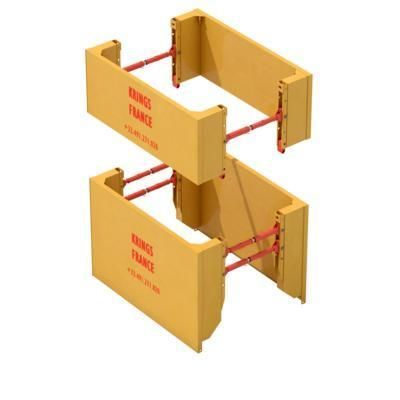

The manhole box KSECK is designed for rapid manhole construction using trench-box installation techniques. It complements standard monobloc trench boxes such as the light KVL, KS60 and KS100. The U-form profile has a panel thickness of 0.50 m, forming a 1.00 m wide manhole. These boxes can also be used for installation of precast manhole units.
Specifications (table)
Unit length: 2.00 m - 4.00 m
Base box height: 2.40 m / 3.00 m
Top box height: 1.40 m
Pipe clearance: Max. 1.54 m
Weight: 1730 kg - 2544 kg
Recommended depth: Up to 4.00 m
Handling equipment: Excavator 12 - 18 tons
Technical specifications
The manhole box KSECK is designed for rapid manhole construction using trench-box installation techniques. It complements standard monobloc trench boxes such as the light KVL, KS60 and KS100. The U-form profile has a panel thickness of 0.50 m, forming a 1.00 m wide manhole. These boxes can also be used for installation of precast manhole units.
Specifications (table)
Unit length: 2.00 m - 4.00 m
Base box height: 2.40 m / 3.00 m
Top box height: 1.40 m
Pipe clearance: Max. 1.54 m
Weight: 1730 kg - 2544 kg
Recommended depth: Up to 4.00 m
Handling equipment: Excavator 12 - 18 tons
Technical specifications
- Unit length: 2.00 m - 4.00 m
- Base box height: 2.40 m / 3.00 m
- Top box height: 1.40 m
- Pipe clearance: Max. 1.54 m
- Weight: 1730 kg - 2544 kg
- Recommended depth: Up to 4.00 m
- Recommended handling: Excavator approx. 12 - 18 tons
Catalogs
d-KSECK uk
4 Pages
Other KRINGS INTERNATIONAL products
Monobloc Trench Box
