Sliding trench shoring system ANGLE

Product overview

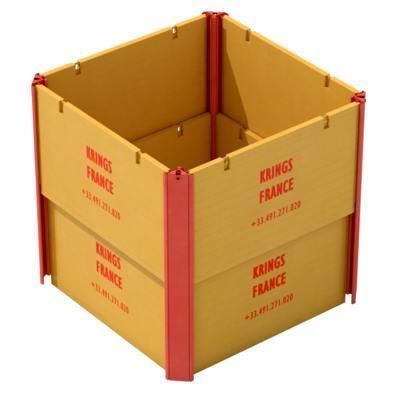

The ECK corner sliding rail system provides rapid four-sided shoring for excavation pits. Quick and easy to install, it is suitable for jacking pits, installation of separators and settling tanks, manholes, bridge pile works and archaeological excavations. Suitable earthwork depths range from 2.4 m to 8.0 m. Panels are identical to those used in other sliding systems (FP, PV) and can be fitted with extension panels to create longer pits. Recommended handling machines: excavator 25–45 t.

Applications

• Jacking pits
• Installation of separators
• Installation of settling tanks
• Manhole installation
• Bridge pile construction
• Archaeological excavations

Available documents
Datasheet and Operating Manual available for this product.

Technical specifications

• Rail lengths: 3.5 / 5.5 / 7.5 m
• Rail weights: 192 / 840 / 1155 kg
• Limit state design moment: 113 / 363 kN.m
• Module length: 2.0 m – 6.25 m
• Recommended handling machine: Excavator 25–45 tons
• Suitable earthwork depths: 2.4 m to 8.0 m
• Panels compatible with FP and PV sliding systems; extension panels available
