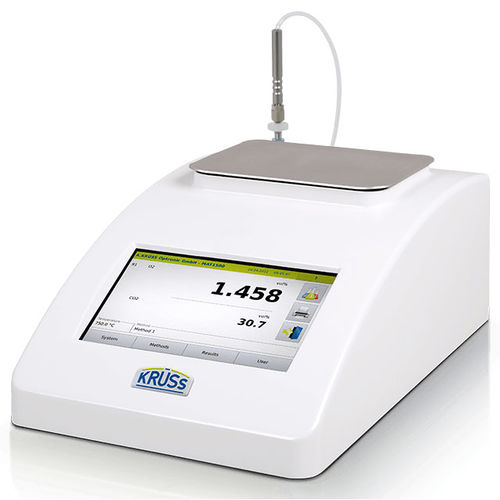

Concentration analyzer MAT1500
oxygencarbon dioxidenitrogen

concentration analyzer
concentration analyzer
Add to favorites
Compare this product


Characteristics

Measured entity
oxygen, carbon dioxide, nitrogen
Measured value
concentration
Application domain
monitoring, for quality control, laboratory, for the food industry
Configuration
benchtop, in-line
Mode of use
automatic
Technology
NDIR, optical
Other characteristics
digital, multi-parameter, with CO2/O2 sensor, high-performance, adjustment, calibration, multi-channel, inspection, high-definition, ecological, cost-effective, with touchscreen, non-dispersive, control

Description

Fitted with a zirconium dioxide sensor and a nondispersive infrared sensor, the MAT1500 is our number one when it comes to the range of application, performance and precision. The measurements are completed within only approx. ten seconds. As is the case with the MAT1400, highly precise results can be achieved with single measurements of oxygen concentrations thanks to the min/max detection even if only a small sample volume is available. • Easy and intuitively to use via touch-screen – even by untrained personnel • Low-drift zirconium dioxide sensor (ZrO2) in the measuring range from 0 to 100 vol.-% • Low-drift non-dispersive infrared sensor (NDIR) measures CO2 in the measuring range from 0 to 50 vol.% with an accuracy of ± 0.2 vol.% • Short measurement period • Only a small sample volume required • Interface package for convenient transfer of measured values (USB, Ethernet, RS-232) • Any number of measurement methods for the monitoring of the measurement process according to method, batch, product and/or production line incl. limit value monitoring • Inteligent unser administration • Complete documentation of measured values (including audit trail) • Flexible data export • Compliance with global standards

Catalogs

Gas Analyser
Gas Analyser
16 Pages
