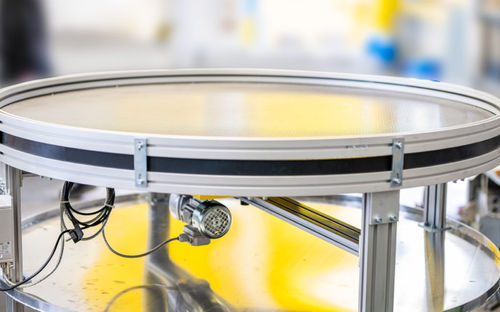

Electric rotary table

horizontalfor conveyor

As component buffers or for separation in production processes Rotary tables are used for buffering and separating small, preferably rotationally symmetrical parts, such as ball bearings, sealing sleeves or even bottles and cans. They are versatile and can be used in various manufacturing processes. In the function as buffer table, components are buffered between two workstations or behind a processing machine and removed at a later time. In this way, different cycle times of two interlinked workstations can be compensated. It is also possible to automatically separate and eject buffered parts. The turntable can thus also be used to feed machines by feeding buffered parts individually to the machine. Specially adapted baffles allow parts to be sorted and then ejected. Features: Versatile in use To compensate different cycle times Suitable for feeding machines Targeted sorting and discharge possible Base frame • Stable frame made of anodized aluminum profiles • Fixed edge, on request with openings for the inward and outward transfer of parts • Foot frame with fine height adjustment (+/- 50mm), on request with wheels Plate: • Plastic-coated circular blank • Plastic-coated circular blank with smooth or structured V2A coating • Full plastic circular blank • Circular blank as oil pan with galvanized or V2A perforated plate support Drive: • Gear motor 230/400 V, 50 Hz, protection class IP54 • Power transmission via chain with slip clutch Speed: • Constant 1 rpm or 2 rpm • Adjustable via frequency controller on request
