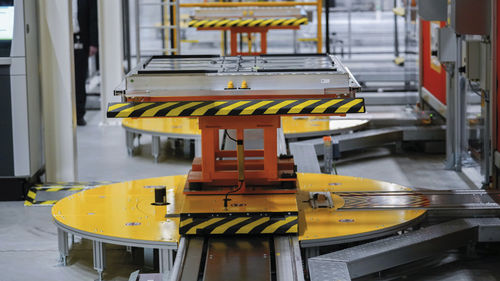

Industry conveyor system LOGO!MAT E series

transportworkpiece

LOGO!MAT eCart is a modern conveyor system with self-propelled, intelligent workpiece carriers on a passive conveyor line. It is specially designed for flexible assembly concepts in assembly automation and test automation, such as component assembly in electric mobility. Thanks to the modular rail design, future expansions or retrofits can be easily implemented. The conveyor system LOGO!MAT eCart is industry 4.0-compatible and is characterized by low maintenance, high availability and high reliability. Production lines with maximum flexibility The conveyor line consists of maintenance-free, fully accessible conveyor tracks with an integrated busbar with 48 DC drive power, which supplies the drive of the individual workpiece carriers. At the same time, it can be used to drive different tools on the eCart, e.g. electrically driven elevators, rotary units, clamps or other equipment. This standard function offers maximum flexibility in the design of a wide variety of part fixtures. Auxiliary power is available at all times, regardless of whether the workpiece carrier is at a station or in the transition between stations. Comprehensive control throughout assembly logistics Stop units can easily be moved and added along the line. They bring the workpiece carriers to a precise stop and enable communication between the main PLC, the cart and the intelligent, driven tool. This means maximum control over production.
