Manual sandblasting machine StormyBLAST

injectorpressuresuction

Overview

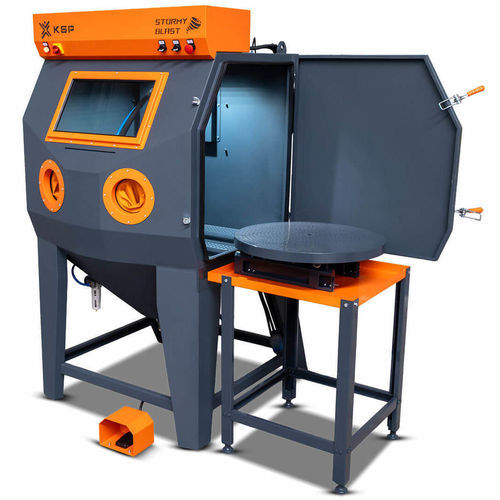

Developed by KSP Machine, the StormyBLAST A1000 is a floor sandblasting machine designed for industrial surface preparation of metal parts. It combines a high-performance blasting gun with a rotary basket to deliver uniform cleaning for parts up to 100 kg.

Operation & Key Elements

• High-performance blasting gun for efficient removal of rust, paint and residues.
• Pneumatic foot pedal for safe operator positioning and consistent blasting cycles.
• Rotary basket Ø 650 mm with 100 kg load capacity for even exposure of all part surfaces.
• Adjustable pressure system including control valve and manometer to set blasting intensity (operating range documented 6–8 bar; technical range 6–10 bar).
• Integrated steam/dust exhaust system to reduce humidity and airborne particles during operation.
• Powerful internal lighting to improve visibility and processing quality.
• Manual loading/unloading standard; automatic loading/unloading available as an option.

General Features

• Working area (A1000): 1000 x 680 mm; loading height: 700 mm.
• Durable 2 mm DKP sheet-metal body for industrial use.
• Integrated filtration system collects abrasive waste and extends abrasive service life.
• Manual side door for safe access and part handling.
• Standard loading cart and handling aids to reduce manual effort.
• Electrical supply: 220 V; air consumption: 500 L/min.

Technical specifications (tabular data)
Specifications | StormyBLAST A1000 | StormyBLAST A1300
Working Area (mm) | 1000 x 680 | 1300 x 880
Maximum Part Height (mm) | 700 | 900
Basket Size (mm) | 650 | 850
Maximum Part Weight (kg) | 100 | 100
Tank Capacity (kg) | 70 | 90
Pressure Balancing Valves | s | s
Manometer | s | s
Air Requirement (L/min) | 500 | 500
Electrical Control | 220 V | 220 V
Air Pressure (bar) | 6–10 | 6–10
Safety Pedal | s | s
Side Door Opening/Closing System | Manual | Manual
Sandblasting Gun | s | s
Exhaust Fan | s | s
Rotary Table Manual Loading/Unloading | o | o
Rotary Table Automatic Loading/Unloading | s | s
Loading Cart | s | s
Filtration System | s | s
Internal Lighting | s | s
2 mm DKP Sheet Body | s | s

Notes

• Documented air pressure for A1000 appears as 6–8 bar in operational notes and 6–10 bar in the technical table; confirm required pressure for the specific abrasive and part material.
• Standard configuration includes manual loading; specify automatic loading if required.
