Absolute pressure transmitter DP11/9
ceramicanalogwith display

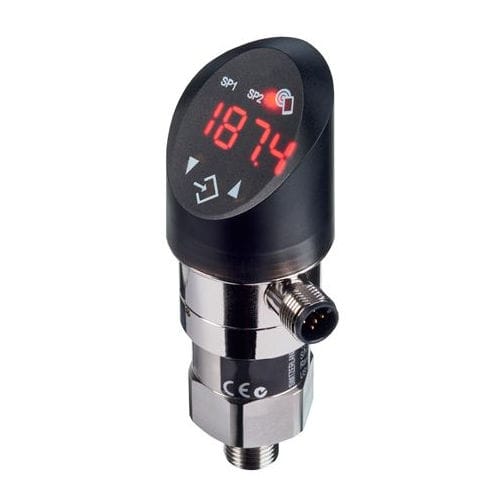

Absolute pressure transmitter - DP11/9 - KTN - ceramic / analog / with display
Absolute pressure transmitter - DP11/9 - KTN - ceramic / analog / with display
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Technology
ceramic
Output
analog
Other characteristics
with display
Pressure range

Max.: 100 bar
(1,450.38 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

INDUSTRIAL PRESSURE TRANSMITTER WITH DISPLAY Description •Measuring principle: Ceramic thick layer / Steel thin layer •Measuring range: 0 ... 0.2 to 0 ... 100 bar 0 ... 2.5 to 0 ... 1500 psi adjustable •Output signal: 4 ... 20 ma, 0 ... 5 Vdc, 1 ... 6 Vdc, 0 ... 10 Vdc, switchable ma or V •Switching output: 2 PnP transistors •Accuracy @ 25 ° c typ: ± 0.5% Fs typ •Medium temperature: -25 ° c ... + 85 ° c •Ambient temperature: -25 ° c ... + 85 ° c •Display pressure unit: bar, psi, MPa, kPa, mca, mmca,% •Logger: Circular memory: 3518 memory points sampling time: 0.1 ... 999.9 s, off (0)
