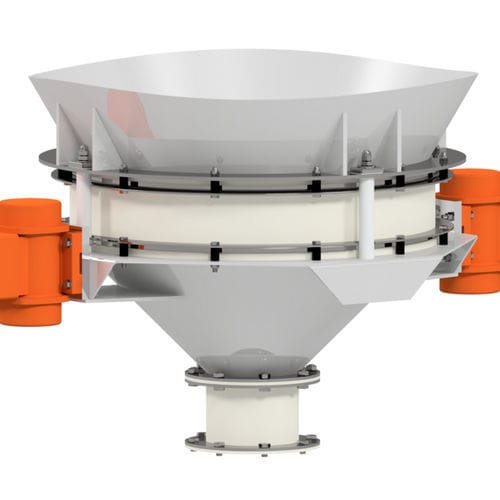

Stainless steel bin activator SiloTray 1204

Product overview
Controlled discharge from silos and bins with the metering bin activator SiloTray 1204 from Kubota Brabender Technologie.

Technical details

• Vibratory metering bin activator designed for installation as a discharge floor in silos and bins
• Driven by variable-speed unbalance motors to adjust feed rate
• Compaction-free "first in–first out" discharge principle
• Operates in continuous or intermittent volumetric metering modes

Applications & benefits

• Ensures controlled, uniform feeding of downstream metering or conveying equipment
• Reduces risk of material segregation and bridging during discharge
• Suitable for integration in automated bulk handling lines

Installation & control

• Compatible with variable-speed drives and standard control systems
• Adjustable unbalance and speed allow precise volumetric metering
• Mounting options adapted to existing silo outlet flanges

Documents

• Work standard and datasheet available as PDF from Kubota Brabender Technologie

Characteristics / technical specifications

• Product type: Vibratory metering bin activator (discharge floor)
• Drive: Variable-speed unbalance motors
• Discharge principle: Compaction-free "first in–first out"
• Function: Controlled discharge or volumetric metering
• Application: Consistent refilling of downstream metering or conveying equipment
• Documentation: Work standard (PDF)
