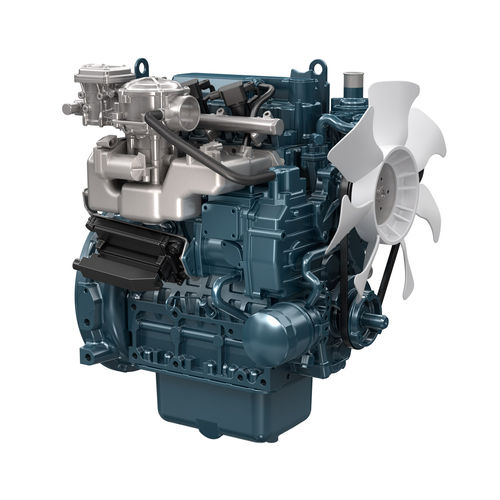

LPG engine WG1903 series
3-cylinder4-strokewater-cooled

LPG engine
LPG engine
LPG engine
Add to favorites
Compare this product


Characteristics

Type
LPG
Number of cylinders
3-cylinder
Other characteristics
4-stroke, water-cooled
Torque

140 Nm (103.2587 ft.lb)

Power

32.6 kW, 35 kW (44.324 hp)

Rotational speed

2,400 rpm, 2,700 rpm (15,079.64 rad.min-1)

Description

GENERAL SPECIFICATION Engine model: WG1903-GL Emission regulation: EPA Tier 2/CARB Tier 3 + EU Stage V Type: Vertical, water cooled 4-cycle spark ignited engine Fuel Type: LPG Cylinders: 3 Bore and stroke - mm (in): 88.0×102.4 (3.465×4.031) Displacement - L (cu.in): 1.868 (114.0) Aspiration: Naturally aspirated Aftertreatment: Three-way catalyst Rated output / speed*1 - kW (HP) / rpm: 35.0 (46.9) / 2700 Maximum torque / speed - Nm (lb-ft) / rpm: 140 (103) / 1400 Length x Width x Height*1 - mm (in): 551 × 534 × 701 (21.7 × 21.0 × 27.6) Dry weight*2 kg (lb): 167 (368) FEATURES and BENEFITS Emissions Kubota’s WG1903-GL engine has been designed to comply with EPA Tier 2 / CARB Tier 3 + EU Stage V. Fuel Flexibility The installation compatibility that exists between Spark-Ignition engines (SI) and Compression-Ignition engines (CI) is convenient for customers who need fuel flexibility for their products. The Kubota WG1903 includes gasoline, LPG, and natural gas versions, as well as dual fuel (gasoline and LPG) version. Durability and Reliability Kubota WG1903 SI engines are designed after Kubota 03 Series diesel (CI) engines. While keeping the same footprint as the D1803 diesel engines, they offer performance similar to that of our turbo diesel engines, which are known worldwide as reliable industrial engines. The Kubota WG1903 engine offers very low vibration and extremely low noise as well.
