Robotic slip ring SR160P

IP65

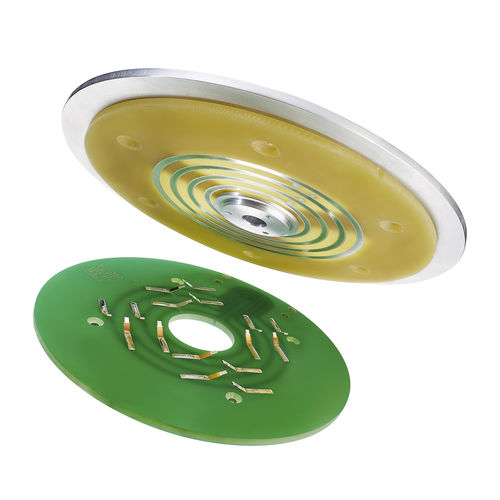

Slip rings for robotics / End-of-Arm-Tooling The pancake slip rings are the ideal solution for End-of-Arm-Tooling in robotics. They guarantee the reliable transmission of signals, data and load in a very short installation space and at low weight. The system consists of two superimposed boards with slip ring tracks and transfer brushes. The flexible design allows optimal integration into your End-of-Arm-Tooling. For example, for additional positioning on high-precision robots, the slip ring can also be combined with a secondary encoder. Benefits Properties Up to 20 channels for fieldbus / Industrial Ethernet, load and signal transmission Particularly short design, low weight with high signal density High contact reliability Optionally with integrated Kübler absolute encoder As kit or encapsulated for optimum integration Maintenance-free Your benefits Diameter 160 mm – installation depths starting at 10 mm Working temperature from -40°C ... +75°C Load transmission up to 5 A / 60 VAC, 48 VDC
