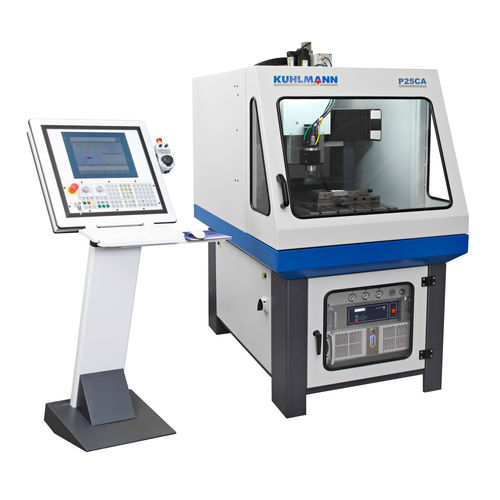

3-axis CNC milling machine P25Cverticalfor steelfor copper
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for steel, for copper, for stainless steel, for brass, for non-ferrous metals, for aluminum
- Structure
- with moving table
- Associated functions
- engraving
- Applications
- for the automobile industry, for the aeronautical industry, for aeronautics, for the mold industry, for small workpieces, for the aluminum industry, for graphite machining, for stainless steel alloys, for medical applications, for small parts production
- Other characteristics
- compact, high-performance, high-rigidity, high-precision, HSC, modular, with automatic tool changer
- X travel
500 mm
(19.69 in)- Y travel
600 mm
(23.62 in)- Z travel
200 mm, 300 mm
(7.87 in, 11.81 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 60,000 rpm
(376,991 rad.min-1)- Power
Min.: 0.3 kW
(0.41 hp)Max.: 4.5 kW
(6.12 hp)- Work feed X-axis
15,000 mm/min
(9.84 in/s)- Work feed Y-axis
15,000 mm/min
(9.84 in/s)- Table load capacity
200 kg
(441 lb)- Positioning accuracy
1 µm
- Repeatability
1 µm
- Weight
Min.: 800 kg
(1,763.7 lb)Max.: 1,000 kg
(2,204.62 lb)- Overall length
1,520 mm
(59.8 in)- Overall width
860 mm
(33.9 in)- Overall height
1,800 mm
(70.9 in)
Description
P25C’s is characterised by it compactness and a cost to performance ratio that is highly advantageous. Precision and durability of the P25C will ensure a long-term professional success. It has a large work space that facilitates engravings and the most subtle of milling results at low costs. The flexible modular construction, application-oriented software and optional control produce customer-specific solutions. The applications range from a plate to demanding dies to die casting molds.
Catalogs
P25C, P25CA
8 Pages
