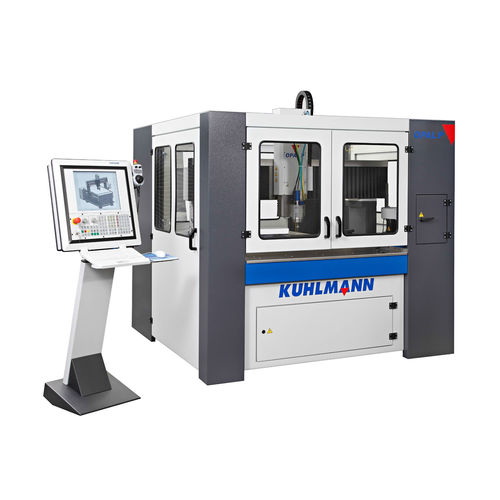

3-axis CNC milling machine Opal P
verticalfor steelfor brass

3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass - image - 2
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass - image - 3
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass - image - 4
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass - image - 5
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass - image - 6
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass - image - 7
3-axis CNC milling machine - Opal P - KUHLMANN Werkzeugmaschinen + Service GmbH - vertical / for steel / for brass - image - 8
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for steel, for brass, for copper, for stainless steel, for wood, for aluminum
Structure
mobile gantry
Associated functions
engraving
Other characteristics
high-rigidity, high-precision, high-productivity, multi-spindle
X travel

1,250 mm
(49.21 in)

Y travel

1,250 mm, 2,000 mm
(49.21 in, 78.74 in)

Z travel

300 mm
(11.81 in)

Rotational speed

Max.: 60,000 rpm
(376,991 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Power

10 kW
(13.6 hp)

Work feed X-axis

Max.: 20,000 mm/min
(13.12 in/s)

Min.: 0 mm/min
(0 in/s)

Work feed Y-axis

Max.: 20,000 mm/min
(13.12 in/s)

Min.: 0 mm/min
(0 in/s)

Table load capacity

1,000 kg
(2,205 lb)

Positioning accuracy

1 µm

Repeatability

1 µm

Weight

Max.: 5,000 kg
(11,023.11 lb)

Min.: 3,500 kg
(7,716.18 lb)

Overall length

Max.: 3,400 mm
(133.9 in)

Min.: 2,150 mm
(84.6 in)

Overall width

2,200 mm
(86.6 in)

Overall height

2,000 mm
(78.7 in)

Description

The Opal P is a CNC milling machine engineered by Kuhlman. It is characterized by the large working area and flexible optional unit. The machine ensures high-quality precision through the ball screws driving both sides. It may obtain high position accuracy with the optional glass scales used as direct path measuring mechanism. The equipment also offers increased productivity by means of milling spindles utilized as multi-spindle device. It allows customers to select from engraving machine control KM4 and the DIN control andronic KM3060.
