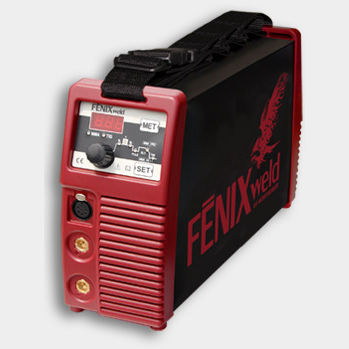

Arc welder FÉNIX 200 PFC

inverter

Single phase undervoltage portable inverter machines for welding with stick electrode and TIG method FÉNIX 200 PFC FÉNIX 200 PFC is a compacted, portable undervoltage welding machine for MMA and TIG welding, which is equipped with PFC (Power Factor Correction). FÉNIX is constructed by using energy-saving inverter microprocessor technology PFC highest levels with the using of a planar transformer, which modulates the input stream so that it has an almost ideal sinusoidal waveform, which provides up to 92% efficiency of the machine. PFC technology ensures stable welding process with fluctuating voltage el. network, even when using long extension cords and use electric generators, without any apparent difference in the arc. The machine is able to operate from 90 V in el. Network. FÉNIX 200 PFC is able to work of the same protection from the network and to get against conventional welding machines up to 40% more power (eg where the machine ejects the fuse at 150 A, FÉNIX 200 PFC welded without problems on current of 200 A).
