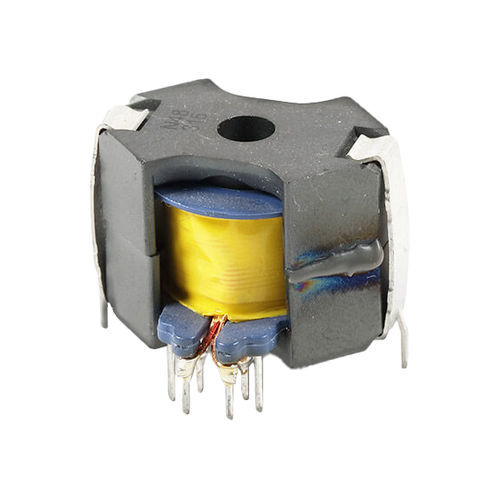

Power transformer

encapsulatedhigh-frequencySMD

Switching power supplies and converters are an indispensable source of energy for electrical appliances. For decades, KUK Group has been one of the most innovative manufacturers of high frequency (HF) transformers, in particular ferrite transformers and ferrite coils as an associated important component. Thanks to its many years of experience, KUK can meet the most diverse requirements in the manufacture of HF transformers: Windings on standard bobbins E, ETD, EFD, P, PQ, RM, U … 10 kHz – 10 mHz frequency area LLC transformator / Flyback / forward / push-pull topologies SMD, THT Varnished, sealed, molded inserts Single/multiple windings Insulation strength / creepage distances Intermediate insulations Screening/shielding Temperature-resistant, UL Single/multiple chamber Transformers can be produced with single, double or triple insulated winding wires, depending on the desired insulation class. Varnished copper wires, RF strands Insulated wires (PTFE, TEX-E) Copper ribbons Extremely thin winding wire: 10µm Thanks to its many years of experience, KUK can meet the most diverse Transformers can be produced with single, double or triple insulated winding wires, depending on the desired insulation class. Varnished copper wires, RF strands Insulated wires (PTFE, TEX-E) Copper ribbons Extremely thin winding wire: 10µm KUK has a broad know-how in the application of various core materials for transformers, transmitters and chokes. Ferrite Iron powder Carbon Mu Sendust High Flux MPP Amorphous/nanocrystalline core types Sheet metal, split-tape wound cores
