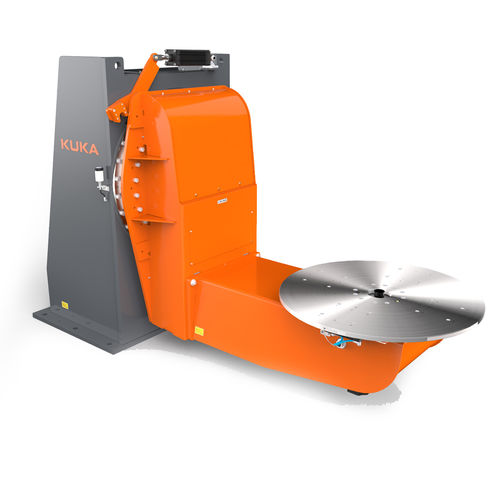

Motorized welding positioner KP2-SV_HWvertical2-axis

motorized welding positioner
motorized welding positioner
Add to favorites
Compare this product
indicative price

Characteristics

Type
motorized
Orientation
vertical
Number of axes
2-axis

Description

KP2-SV HW two-axis positioner The KP2-SV HW two-axis positioner with one rotational and one swivel axis ensures ideal positioning and accessibility of the workpieces at all times. It is available with a payload capacity of 1,100, 2,600 or 5,000 kilograms. Advantages of the KP2-SV HW two-axis positioner: Enormous flexibility: Ensures an optimal machining position and good accessibility of normal and complex components. Stiff design: High reliability of the machining operation, irrespective of the shape and size of the components. Integrated hollow shaft: The positioner has an integrated hollow shaft for simplified supply of energy and fluids and easy integration. High precision: Thanks to the rotational axis and swivel axis, the KP2-SV HW two-axis positioner ensures precise positioning even in the case of large and heavy components. High welding power: Weld with up to 1000 A with a duty cycle of 100%. Data and variants of the KP2-SV HW positioner: KP2-SV HW 1100 KP2-SV HW 2600 KP2-SV HW 5000 Rated payload1,100 kg2,600 kg5,000 kg Turning range± 185°± 185°± 185° Swivel range± 185°± 185°± 185° Rotational velocity90°/s50°/s17°/s Swivel velocity17°/s15°/s8°/s Repeatability± 0.2 mm r = 400 mm± 0.35 mm r = 600 mm± 0.35 mm r = 600 mm Loading height700 mm700 mm 1,334 mm Tool radius1,050 mm1,250 mm2,200 mm Optional: rated welding current (100% duty cycle) 500 A /1000 A500 A /1000 A 500 A /1000 A
