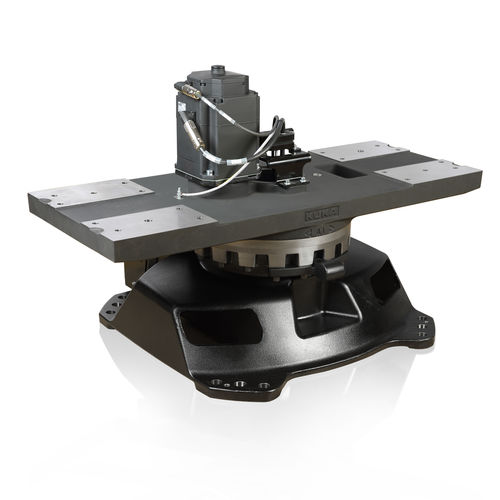

KP1-MB single-axis modular rotary table
The KP1-MB modular rotary table enables the simple and flexible design of individual installations or turntables. It is available with a payload capacity of 2,000, 3,000, 4,000 or 6,000 kilograms.
Advantages of the KP1-MB modular rotary table:
Big performer in a small space:
the KP1-MB has a particularly compact design. This provides you with greater spatial flexibility for designing your specific installations.
an integrated hollow shaft in the center of the mounting platform allows you to route energy and fluid supply lines in a space-efficient manner. This gives you extra flexibility for your specific application.
standardized interfaces allow for quick and simple integration into your systems or cells.
integrated fork slots ensure simple transportation and straightforward integration into your installation.
with a pose repeatability of 0.0023°, the KP1-MB assures high-precision positioning of components and fixtures.
Short cycle times:
reduce the turning times of your individual solutions by up to 46%. With the KP1-MB S variant, KUKA offers maximum dynamic performance for minimized cycle times, with a turning time of 2.1 seconds per 180° and a 3,000 kilogram payload.
Comparison of the data and variants of the modular rotary table:
KP1-MB 2000 KP1-MB 3000 S KP1-MB 4000KP1-MB 6000
Rated payload2,000 kg 3,000 kg4,000 kg6,000 kg
Pose repeatability0.0023° 0.0023°0.0023°0.0023°
