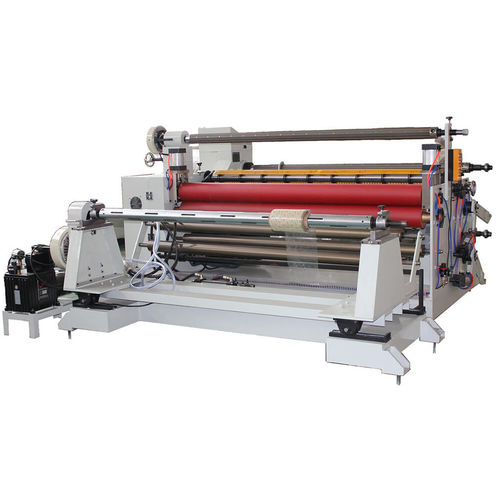

Aluminum foil slitter-rewinder DP-1FQ series
for plastic filmsfor adhesive tapeautomatic

aluminum foil slitter-rewinder
aluminum foil slitter-rewinder
aluminum foil slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
for plastic films, for adhesive tape, for aluminum foil
Options
automatic
Field
fast, for the electronics industry
Working width

Min.: 8 mm (0 in)

Max.: 1,800 mm (71 in)

Speed

80,000 mm/min (52 in/s)

Description

automatic multi function laminating and slitting machine Multifunction laminating slitting machine 1. The max width: 1800 mm 2. The minimum slitting width: 8-25 mm 3. Material thickness range: 0.05-3 mm 4. Tolerance: 0.2 mm, Precision: 0.1 mm 5. The speed: 80 m /min 6. Under CE and ISO 7. Manufacturer experience: 12 years 8. Export experience: 10 years Machine Features 1. Max feeding width: 1800mm; 2. Minimum slitting width: 8-25mm; 3. Material thickness range: 0.05-3mm; 4. Tolerance: 0.2mm, Precision: 0.1mm; 5. Speed: 80m/min; 6. This jumbo roll slitting machine is a slitting equipment with high precision and sensitivity; 7. Inflatable bearings are used for feeding and receiving materials; 8. Imported magnetic powder clutch is adopted to control the tension; 9. Imported gas sensitive device is adopted to detect rectification, fully automatic hydraulic rectification control; 10. Automaticly detection, rectification and metering can be realized; 11. It is characterized by accurate slitting, fast speed, easy operation and maintenance; 12. Under CE and ISO certificaitons; 13. Manufacturer experience: 10 years; 14 Export experience: 5 years;
