Seawater hose OROFLEX DRAG
for sludgefor wastewaterTPU

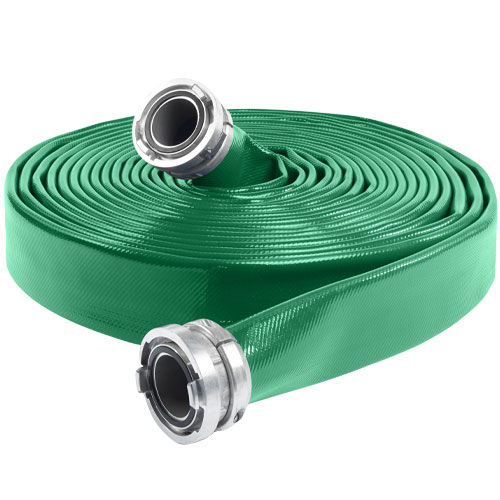

Seawater hose - OROFLEX DRAG - KURIYAMA EUROPE - for sludge / for wastewater / TPU
Seawater hose - OROFLEX DRAG - KURIYAMA EUROPE - for sludge / for wastewater / TPU
Add to favorites
Compare this product

Characteristics

Use
for seawater, for sludge, for wastewater
Material
TPU
Applications
transport, agricultural
Other characteristics
standard, extruded, flat
Inner diameter

102 mm, 115 mm, 127 mm, 140 mm, 152 mm
(4.016 in, 4.528 in, 5 in, 5.512 in, 5.984 in)

Outer diameter

109 mm, 112 mm, 134.4 mm, 147.4 mm, 159.6 mm
(4.291 in, 4.409 in, 5.291 in, 5.803 in, 6.283 in)

Pressure

12 bar, 14 bar, 17 bar
(174.045 psi, 203.053 psi, 246.564 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 50 °C
(122 °F)

Delivered length

100 m, 200 m
(328'01" , 656'02" )

Description

Designed and recommended as a liquid manure drag hose, irrigation feeding line, traveling irrigator supply line, sludge injection, transport of compatible fluids (see chemical resistance chart), brackish and sea water and waste water transport. Lengths: Standard lengths in 100m (330ft) and 200m (660ft). Longer lengths may be available upon request. Service Temperature Range: -40ºC (-40ºF) to 50ºC (122ºF). Special versions for higher and lower temperatures available upon request. Color: Green cover is the standard. Other colors are available upon request.
