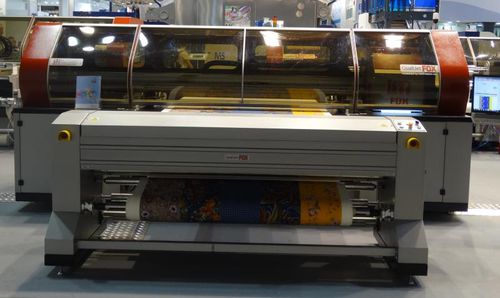

Inkjet printing machine QUALIJET FOX 4
digitalfor textilescolor

inkjet printing machine
inkjet printing machine
inkjet printing machine
inkjet printing machine
inkjet printing machine
Add to favorites
Compare this product


Characteristics

Printing technology
inkjet, digital
Applications
for textiles
Number of colors
color
Other characteristics
automatic, high-speed

Description

PRINTHEADS Kyocera KJ4B-0300 with 2,656 nozzles (300dpi - 2 colors/head) Water based, variable dot, piezo printhead PRINTING RESOLUTION 300x300 dpi - 1,2,3,4 passes - Uni and Bidirectional DROP SIZE From 5 to 72 pl - 16 greyscale levels PRINTHEADS CLEANING Automatic purge cycle with cleaning station PRINTING WIDTH 1.800mm - 2.400mm - 3.400mm INKS Open ink system -Water based - (certified by Kyocera) ENVIRONMENT Temperature 20-25°C - Humidity 35-65% rh INK LINE (EACH CHANNEL) Ink degassing, filtering, depression and temperature control INK FEED SYSTEM 1x10 litres tanks per color, with automatic level detection FABRIC FEED Powered unwinder for fabric roll up to ø 400mm, 100 kg, with tension control FABRIC TRANSPORT High precision adhesive belt system with twin brush washing unit FABRIC EXIT Powered rewinder for fabric rolls up to ø 400mm, 100kg, with tension control ELECTRIC 380Vac - 50/60 Hz OPTIONAL Inlet from plaited fabric Unwinder for big batch on A-frame, ø 1500mm, 700kg Exit for plaited fabric PRINT RIP Open to any adapted print RIP
