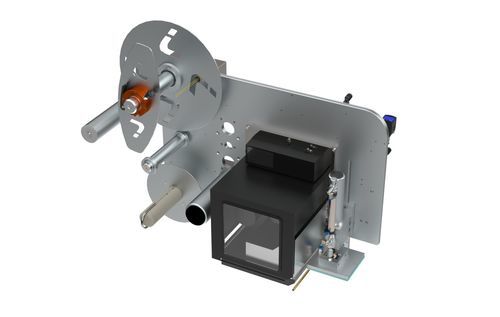

Automatic label printer-applicator MID RANGE AL

Solution for real-time printing and application of self-adhesive labels on products of different shapes, sizes and materials. Suitable for printing and applying labels on the side of the product parallel to its direction of travel. Available in the AL 4 version with integrated industrial thermal transfer print engines with a print width of 4” – 105 mm and in the AL 6 version for print engines with a width of 6” – 160 mm. Standard features: - Reel holder with mechanical unwinder - Anodised aluminium reel fixing discs with quick-release locking device - Motorised siliconised support rewinder with locking device - Ready for integration with printing modules: Sato®, Zebra®, Car Valentin®, CAB®, NOVEXX®, TSC® - Linear applicator module with strokes up to 500 mm - Separate control unit with painted metal or stainless steel casing, display with function keys and operating cycle selection with adjustable parameters to achieve the ideal configuration - Interfaces for alarms and external signals Optional accessories: - Start photocell - End-of-roll pre-alarm - Three-colour signal lamp - Support structure Technical Specifications / Features: - Product type: Automatic Print & Apply System, Mid Range - Label application: Side of product, parallel to direction of travel - Print width: 4” (105 mm) or 6” (160 mm) depending on version - Compatible print engines: Sato®, Zebra®, Car Valentin®, CAB®, NOVEXX®, TSC® - Applicator stroke: Up to 500 mm - Control unit: Separate, with display and function keys, painted metal or stainless steel casing - Reel holder: Mechanical unwinder, anodised aluminium discs, quick-release - Rewinder: Motorised, siliconised support, locking device - Alarm interfaces: Yes - Optional: Start photocell, end-of-roll pre-alarm, three-colour signal lamp, support structure
