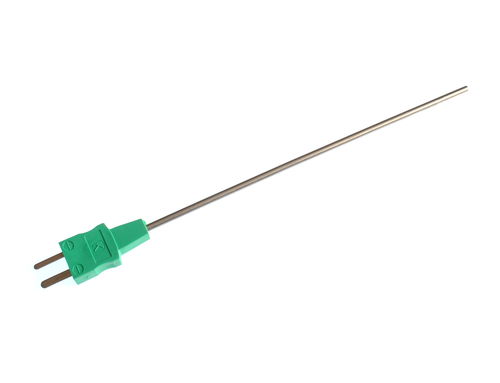

Type K thermocouple XE-3700

insertionmineral-insulated

Mineral Insulated Thermocouple with Moulded on Mini K IEC Plug *Mineral insulated Type ‘K’ Thermocouple. *310 stainless steel sheath. *Flexible sheath can be bent/formed to suit many applications and processes. *Insulated hot junction. *Probe temperature range -40°C up to +1100°C. *Miniature moulded plug termination (-40°C to +110°C). *Moulded plug gives a robust construction as well as providing a waterproof termination. *Conforms to IEC specification. Specifications *Sensor type: Type ‘K’ (Nickel Chromium/Nickel Aluminium) *Construction: Flexible mineral insulated probe with 310 stainless steel sheath *Element/hot junction: Single element, junction insulated from sheath (offers protection against spurious electrical signals) *Manufactured: Tolerances of materials used in the manufacture conform to class 1 specification to relevant BS EN 60584 standards. *Termination: Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification *Probe temperature range: -40°C to +1100°C *Plug temperature range: -40°C to +110°C
