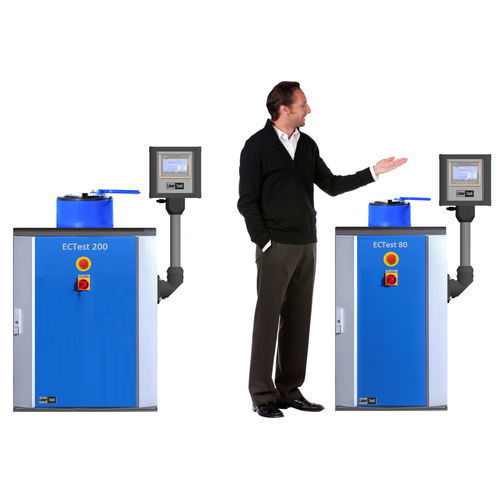

Resistance testing machine EC series

durabilitysemi-automaticfor sheet metal

Universal-Sheet Metal Testing Machines EC Series in bench or stand version, which are primarily designed for measuring and testing of deep-drawn plates by the ERICHSEN method. These machines are suitable for research and development as well as for routine quality control in laboratories, testing rooms and plants, where they support development processes for the characterisation of new alloys and new processing techniques as well as for subsequent series production. LABORTECH machines are characterized by very high rigidity of the test frame, speed and accuracy of measurement in semi-automatic mode. • Robust vertical table or stand modular design with mechanical resistance and durability. • Abnormally high rigidity and mechanical resistance of the machine combined with high-level ergonomics. • Integrated clamping mechanism with mechanical or hydraulic clamping. • Deflection controlled electromechanically or hydraulically according to the type of load. • The MACHINES of the EC series comply with all the above-mentioned EC Directives on Machinery and Equipment and operate in accordance with the new safety functions according to EN ISO 13850. • The basic control of the machine is performed by SIEMENS PLC with integrated touch LCD display with SMTest -S software in the base of the machine or higher FULL version with measuring and control electronics of the EDCi series with a sample rate of 2.5 or 10 kHz, 24 bit, ± 250,000 pieces (20 ms).
