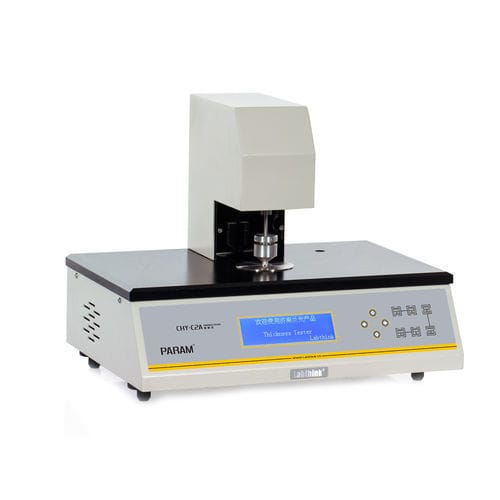

Pipe thickness gauge CHY-C2A

rubbercoppertextile

CHY-C2A Thickness Tester is designed based on mechanical contacting method, which effectively ensures standard and accurate test data and is applicable to thickness test of plastic films, sheets, diaphragms, paper, foils, silicon wafers and other materials within specified range.
Features

• Contact area and test pressure are strictly designed according to standard requirements, while customization is also available
• Automatic lifting presser foot facilitates to minimize system errors caused by human factors during the test
• Manual or automatic operating mode for convenient test
• Displays real-time data of maximum, minimum, average and standard deviation value for data analysis
• Automatic statistics and printing functions are available which is convenient for the user to obtain the test results
• Equipped with standard block for system calibration to ensure uniform and accurate test data
• The instrument is controlled by micro-computer with LCD display, PVC operation panel and menu interface
• Equipped with RS232 port which is convenient for data transfer
• Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports

StandardsThis instrument conforms to multiple national and international standards:
ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817, GB/T 6672, GB/T 451.3, GB/T 6547
ApplicationsThis instrument is applicable to the determination of thickness of:
Basic ApplicationsPlastic Films and Sheets
Paper and Paper Board
Foils and Silicon Wafers
Metal Sheets
Textiles and Non-woven Fabrics
Solid Electrical Insulating Materials
Extended ApplicationsExtended Test Range of 5mm and 10mm
Curved Presser Foot
Technical SpecificationsSpecificationsCHY-C2A Thickness TesterTest Range0~2 mm (standard)
0~6 mm, 12 mm (optional)Resolution0.1 μmTest Speed10 times/min (adjustable)Test Pressure17.5±1 KPa (film)
50±1 KPa (paper)Contact Area50 mm2 (film)
200 mm2 (paper)
Note: Select one presser foot for film or paper; Customization is availableInstrument Dimension461 mm (L) x 334 mm (W) x 357 mm (H)Power Supply220VAC 50Hz / 120VAC 60HzNet Weight32 kg
ConfigurationsStandard Configurations
Instrument and Standard Block
Optional Parts
Professional Software, Communication Cable, Presser Foot, Weight, and Micro-printer
