Hot tack testing device C632M

automaticmaterialsfor packaging

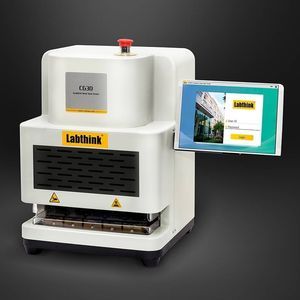

C632M Hot Tack Tester is applicable in hot tack and heat seal performance tests for plastic films, laminated films and other packaging materials. Constant Pressure & Automated Sample Feeding Automatic pressure control technology manages the pressure fluctuation within 0.005MPa The test pressure can be set through the program without manual adjustment Automatic sample feeding technology to ensure the accuracy of test time Safety Design & Automatic Sample Clamping The overall protective cover is designed to prevent hand pinching, scalding and collision, making sure the operation is safer Preload fixtures are convenient for sample clamping. Intelligent Control & Reliable Performance The 7 Inch industrial level Touch panel control for easier operation. Sensor static design, reducing force fluctuation Test Standard GB/T 34445, ASTM F1921 Technical Specifications Load Cell Capacity - N - 50 Force Accuracy - FS - 0.5 Force Resolution - N - 0.001 Pressure range - MPa - 0.05～0.7 Pressure resolution - MPa - 0.001 Temperature range - ℃ - Room temperature ~250 Temperature fluctuation - ℃ - ±0.2 Test Speed - mm/min - 1500、2000~12000 Heat Seal Dwell Time - s - 0.1~999.9
