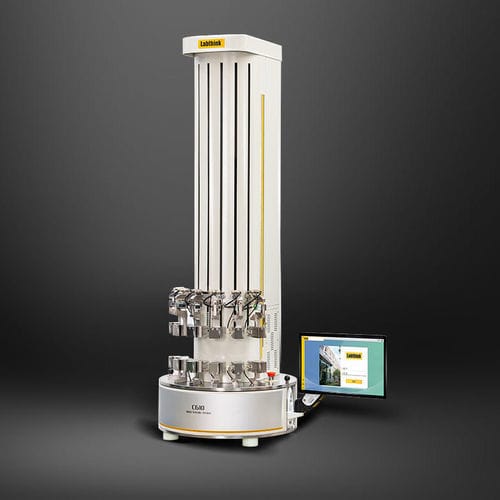

Bending testing machine C610Gshearingtensiletemperature
Add to favorites
Compare this product
Characteristics
- Test type
- shearing, tensile, bending, force, tensile strength, internal bond strength, impact, displacement force, hydrostatic, peel, temperature, peel force, burst
- Operating mode
- automatic, PC-controllable, semi-automatic, robotic
- Test material
- for textiles, for materials, for plastics, circuit breaker, residual current circuit breaker, for power supplies, for quartz watches, for plastic film, for air filters, for rubber, for packaging, for hopper scales, for composite materials, cable sheath and core insulation, for adhesive tape, for photovoltaic modules, PET bottle, for printed circuits, for mobile phone, for sheet metal, fabric, for film, for inverters, for glass, for GPS, wafer, for paper, for woven Bag, for plastic sheets, for flexible materials, hydraulic system, for bearings, for rope, coil
- Sector
- for the packaging industry, industrial, for laboratory, for research and development, for the automotive industry, for quality control, for the construction industry, for the beverage industry, for the food industry, for the paper industry, for medical applications, for the electronics industry, for the aeronautical industry, for workshops, for the textile industry, for the pharmaceutical industry
- Technology
- electromechanical, digital, mechanical, electric, pneumatic, closed-loop
- Configuration
- vertical, compact, modular
- Other characteristics
- precision, double-column, high-speed, with touchscreen, stand-alone, customized, computer-controlled, with large work area, remote-controlled
Description
C610G Auto Tensile Tester is suitable for testing the tensile strength, peeling,elongation, tearing, heat sealing, adhesion, puncture force, opening force,low-speed unwinding force, and pull-out force of products including plasticfilms, composite materials, flexible packaging materials, plastic pipes,adhesives, adhesive tapes, self-adhesive labels, medical patches, releasepaper, protective films, combined aluminum/plastic caps, metal foils,diaphragms, backsheet materials, non-woven fabrics, rubber and paper, etc.
Product Features
Precise and Efficient
Utilizing Labthinks latest technological achievement—Multi-axis Positioning Technology—six stations operate simultaneously for more efficient testing.
16-bit ADC digital conversion chip realizesforce accuracy better than 0.5 grade. Multiple ranges accommodate diverse testing needs.
Closed-loop servo system achieves displacement accuracy better than 0.5 grade. Stepless speed regulation ensuress mooth operation.
Anti-slip pneumatic clamping system ensures accurate test data.
Components of world-renowned brands are used for long-term durability.
Powerful Functionality
Testing items covers professional testing items for flexible packaging materials, including tensile strength, peeling,tearing, heat sealing and elongation-to-tension testing, etc.
Grip spacing can be automatically adjusted,and testing speed can be set flexibly.
Intelligent features such as limit protection, overload protection, and automatic return ensure safe operation.
IntelligentControl
The tester supports operations with a 15.6 industrial touchscreen computer or desktop computer.
Round desktop design saves space.
Rotating test platform is easier for operation.
Multiple sensors for intelligent alerts ensure safer operation.
Built-in Ethernet port for directnetwork connection, supporting remote control and system upgrades.
Professional computer software meets GMP data traceability requirements and pharmaceutical industry compliance needs.
Multi-level operation permission management, configurable on demand.
Electronic signature designed in accordance with 21 CFR Part 11.Test Principle
The specimen is clamped on the grips between the center crossbeam and the base. The center crossbeam and base move relative to each other. A load cell located on the center crossbeam and a displacement sensor built into the tester collect force and displacement changes during testing, allowing calculation of various mechanical performance indicators.
Reference Standards
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM F88,ASTM F904, JIS P8113
GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791,GB/T 2792, GB 14232.1-2004, GB 15811-2001, GB/T 1962.1-2001, GB 2637-1995, GB15810-2001, QB/T 2358, QB/T 1130
YBB00042005, YBB00112004
Applications
The C610series of Auto Tensile Testers offer a wide range of applications, with over100 different specimen grips available for users to choose from, satisfying thetesting requirements of over 1,000 materials. Labthink also providescustomization service to meet diverse testing needs for different materials.
Examplesof some applications are as follows:
Basic Applications
Extended Applications (are to be realized with specific accessories or customization)
Tensile Strength and Elongation Rate
Ampoule Breaking Force
Film Puncture Force
Puncture Force of IV Bag Caps with Bags
Puncture/pull-out Force of Soft Rubber Stoppers
Tensile Strength at Break
Opening Force of Combined Aluminum/plastic Caps
Tearing Force of ZD-type Caps
Opening Force of Oral Liquid Caps
Puncture/pull-out Force of Oral Liquid Caps
Heatseal Strength
90-degree Pull-out Force of IV Bag Caps
Pull-out Force of IV Bag Caps with Bags
23-degree Pull-out Force of Bottle Caps
Puncture/pull-out Force of Bottle Caps and Rubber Stoppers with Bottles
Tear Resistance
90-degree Peeling Force of Adhesive Tapes
Tear Resistance of Adhesive Binding Books
90-degree Peeling Force of Water Insoluble Plasters
Tearing Force of Adhesives
180-degree Peeling
Adhesive Strength Test (Soft)
Adhesive Strength Test (Hard)
Peeling Force of Flexible Tube Caps
Disengagement Force of Catheter and Connector
90-degree Peeling
Pull-out Force of Cosmetic Brush Hair
Pull-out Force of Toothbrush Hair
Breaking Force of Ropes
Opening Force of Jelly Cups and Yogurt Cups
Tensile Strength at Defined Elongation
Peeling Force of Milk Cup Films
Pull-out Force of Rubber Stoppers
45-degree Peeling Force of Bottle Films
Tensile Strength of Ziplock Bag Mouths
Peeling Force of Magnetic Card Cores
90-degree Peeling Force of Magnetic Cards
Tearing Force of Heat Sealing Films
Separating Force of Protection Films
Separating Force of Release Paper
Trouser-type Tearing Force
Unwinding Force of Adhesive Tapes
Pressure Resistance of Plastic Bottles
20-degree Bevel Peeling Force
135-degree Peeling Force of Plugs
Floating Roller Peeling Grips
Eccentric Grips
Grips for Wide Specimens
Japanese-style Sample Grips
British-style Sample Grips
Breaking Force of Contact Lens
Pressure Resistance of Jelly Cups
Compression Resistance of Packages
Compression Resistance of Sponge
Puncture Resistance of Simulated Skin
