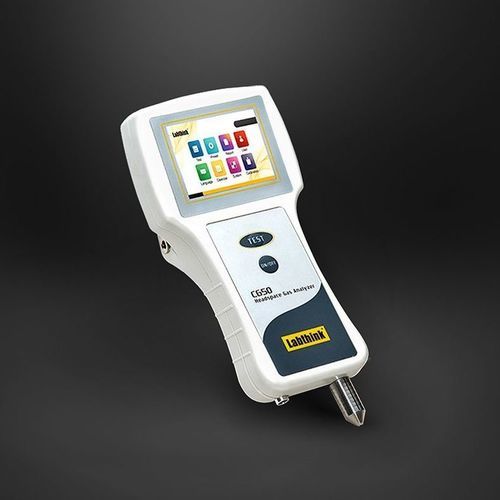

Air analyzer C650M

oxygencarbon dioxidegas

The C650M Headspace Gas Analyzer is a handheld portable instrument for rapid measurement of oxygen (O2) and optional carbon dioxide (CO2) in the headspace of sealed packages, bottles and cans for production, warehouse and laboratory quality control.

Product Features

• Handheld, one-hand operation suitable for production-line testing
• Auto shutdown for energy saving
• One-button calibration for fast setup
• Precision sensors and internal air pump supplied by global manufacturers for stable performance and long service life
• Protective cover for sampling probe to ensure operator safety
• Optional CO2 sensor: NDIR with patented solid-state LED, precision detector and gold-plated optical components
• Industrial-grade touchscreen with one-button operation, intuitive interface, remote upgrade and maintenance
• Chinese and English operating system
• Automatic data storage with power-failure memory; storage up to 1,200 test results
• Optional wireless micro-printer and standard USB ports with professional PC software for data transfer

Test Principle
The internal air pump draws headspace gas to the instrument's sensors. O2 is measured by an electrochemical sensor and CO2 (if fitted) by NDIR; the instrument processes sensor signals and records results when preset conditions are met.

Applications

• Packaging bags
  Measure O2 and optional CO2 in the headspace of non‑vacuum sealed bags used for coffee, cheese, milk tea, milk powder, bread, bean powder, instant foods, pharmaceuticals, etc.
• Packaging containers
  Measure O2 and optional CO2 in the headspace of cans, Tetra Pak, beverage containers and similar sealed containers.
• Extended applications
  Small-volume containers such as ampoule bottles: measure headspace O2 and optional CO2 for pharmaceutical or food quality checks.

Configurations

• Standard: Instrument, sampling probe, filter, seal gasket
• Optional parts: Professional software, wireless micro-printer, B2227 test frame for headspace analyzer, B2226 underwater sampling set, CO2 sensor (optional), pressure sensor

Technical specifications

• Model: C650M
• Testable gases: O2 (standard); CO2 (optional)
• Test principle: O2 — electrochemical; CO2 — infrared absorption (NDIR)
• Sensor life: O2 ≈ 2 years (in air); CO2 >15 years
• Test range: 0 ~ 100%
• Resolution: 0.01%
• Test accuracy: O2 ±0.2%; CO2 ±(0.03% + displayed value × 5%)
• Sampling volume: O2 <2 mL (standard mode); CO2 ≈15 mL (standard mode)
• Dimensions: 220 mm × 110 mm × 70 mm (L×W×H)
• Power supply: 220VAC ±10% 50Hz or 120VAC ±10% 60Hz
• Net weight: 0.6 kg
