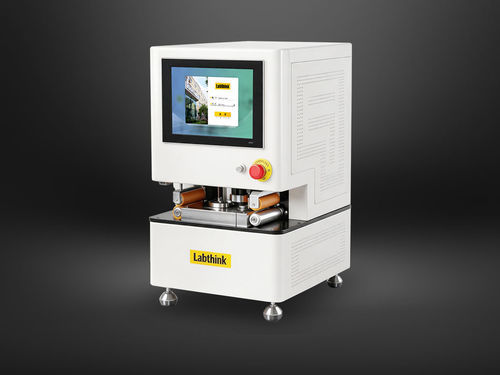

Mechanical combined tester C910H

thicknesspunctureair permeability

Overview C910H Integrated Air Permeability, Puncture and Thickness Testing System employs the volumetric method for gas permeability testing and mechanical principles for puncture strength and thickness measurements. It is specifically suitable for measurement of air permeability, puncture strength and thickness of battery separators and related polymer films.

Product Features
Fully Automatic High-Precision Air Volume Determination Method

• Fully automatic measurement of air volume passing through the sample, eliminating the manual sliding-cylinder method.
• Uses fully automatic pressure control technology with pressure accuracy better than 0.01 kPa.
• Test pressure configurable freely and flexibly through the software.

Contact-type Thickness Measurement Method

• Equipped with a cemented carbide spherical measuring head for high wear resistance.
• Sliding durability exceeds 100 million cycles.
• Sensor uses a photoelectric transmissive linear grating scale for accurate readings.

Mechanical-type Puncture Strength Measurement Method

• Force accuracy better than Grade 0.5 with high repeatability.
• Servo drive system with precision ball screw, stepless speed adjustment and high-precision speed control.
• Pneumatic sample clamping for consistent clamping force and time savings.

Integrated Measurement with Automatic Sample Feeding

• Integrated detection of air permeability, puncture strength and thickness to save labor and improve efficiency.
• Scanning function enables automatic identification and recording of samples.
• Dual-positioning design reduces sample feeding deviation.

Intelligent Control & Reliable Performance

• 12.1″ embedded touchscreen tablet computer running Windows OS.
• Sensors, servo motors and pneumatic components sourced from internationally recognized brands for stable performance and long service life.
• Automatic ambient temperature and humidity monitoring with real-time recording of test conditions.
• Air permeability testing supports multiple display units (e.g. s/100 mL and μm/(Pa·s)).
• Software supports multi-level permission management and optional audit trail features.

Test Principle Air permeability is measured in a controlled environment (temperature, humidity, normal atmospheric pressure). The test records the time required for 100 mL of air to permeate through an area of 6.45 cm2 of the separator sample under an applied pressure of 1.21 kPa.

Reference Standards ISO 5636; TAPPI T460; GB/T 36363-2018; GB/T 458-2008; GB/T 23227; GB/T 12655.

Test Application (Basic Applications)

• Air Permeability Suitable for air permeability testing of battery separators, breathable films and various polymer products.
• Thickness Suitable for thickness measurement of battery separators, breathable films and various polymer products.
• Puncture Strength Suitable for puncture strength measurement of battery separators, breathable films and various polymer products.

Technical Parameters (key table values)
Model: C910H
Measuring range — Air permeability (s/100 mL): 30–1500
Measuring range — Air permeability (μm/(Pa·s)): 0.1–4
Volume resolution: 0.001 mL
Volume precision: 1% (mL)
Pressure range: 0–2 kPa
Pressure precision: 0.01 kPa
Thickness measuring range: 0–2 mm
Thickness resolution: 0.1 μm
Thickness repeatability: 0.5 μm
Puncture strength range: 0.1–50 N
Puncture resolution: 0.001 N
Puncture strength precision: ±0.5% (reading)
Test speed: 0–500 mm/min (integer setting)
Speed accuracy: ±0.5% (reading)
Measuring interval (stroke): 0–600 mm
Sample feeding speed: 0–50 mm/s
Measuring area: 1 in² (6.4 cm²)
Sample size: 4″ x 40″ (10 cm × 100 cm)
Maximum sample thickness: ≤ 80 mil (2 mm)
Head diameter: Φ3 mm (spherical)
Measuring head pressure: < 0.8 N
Puncture fixture inner diameter: Φ50 mm
Puncture needle diameter: Φ1 mm
Air source: dry air (user supplied); required air source pressure: 0.5–0.7 MPa (72.5–101.5 PSI)
Port size: Φ6 mm polyurethane tube
Dimensions (H×W×D): 76 cm × 45 cm × 55 cm
Power supply: selectable 120 VAC ±10% 60 Hz or 220 VAC ±10% 50 Hz
Net weight: 85 kg
Standard configuration: main unit, embedded tablet computer, professional software, Φ6 mm polyurethane tube
Optional: air compressor; CFR 21 Part 11; GMP computer system requirements; DataShield (optional).

Characteristics / technical specifications

• Model: C910H
• Integrated test methods: volumetric air permeability, mechanical puncture strength, contact-type thickness measurement
• Air permeability range: s/100 mL 30–1500; μm/(Pa·s) 0.1–4
• Volume resolution/precision: 0.001 mL / 1%
• Pressure range/precision: 0–2 kPa / 0.01 kPa
• Thickness range/resolution/repeatability: 0–2 mm / 0.1 μm / 0.5 μm
• Puncture range/resolution/precision: 0.1–50 N / 0.001 N / ±0.5% reading
• Test speed: 0–500 mm/min (stepless)
• Measuring area: 1 in² (6.4 cm²); sample size up to 4″ x 40″ (10 cm × 100 cm)
• Power: selectable 120 VAC 60 Hz or 220 VAC 50 Hz
• Dimensions & weight: 76 × 45 × 55 cm; 85 kg
• Air inlet: Φ6 mm polyurethane tube; required air source pressure 0.5–0.7 MPa
• Software: embedded touchscreen tablet, multi-unit display for air permeability, optional DataShield and CFR 21 Part 11 / GMP compliance features
