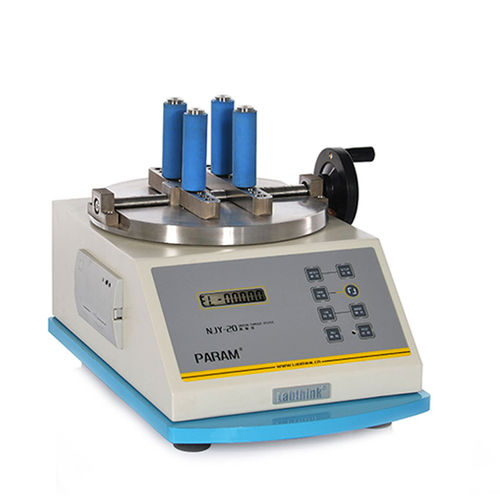

Bench-top torque tester 20 - 50 Nm | NJY-20
for bottle caps

bench-top torque tester
bench-top torque tester
bench-top torque tester
bench-top torque tester
bench-top torque tester
bench-top torque tester
Add to favorites
Compare this product


Characteristics

Type
bench-top
Applications
for bottle caps
Torque

Max.: 50 Nm (36.88 ft.lb)

Min.: 20 Nm (14.75 ft.lb)

Description

Applications -- Bottle package testing, beverage bottle testing, food package testing, pharmaceuticals package testing, Flexible tube package testing Test Property -- Torque Force, Open force, Closure force Standards -- ASTM D2063, ASTM D3198, ASTM D3474 Features -- Micro computer control with LCD -- Automatic retaining peak value -- Standard testing units -- RS 232 Specifications -- Load Cell capacity: 20Nm, 40Nm, 50Nm (optional) -- Accuracy: 1% FS -- Resolution: 0.001Nm -- Clamp Range: Diameter 5~170mm Instrument Size -- 350 mm (L) x 240 mm (W) x 140 mm (H) -- Weight: 19kg Ordering Information -- Catalog Number: NJY-20
