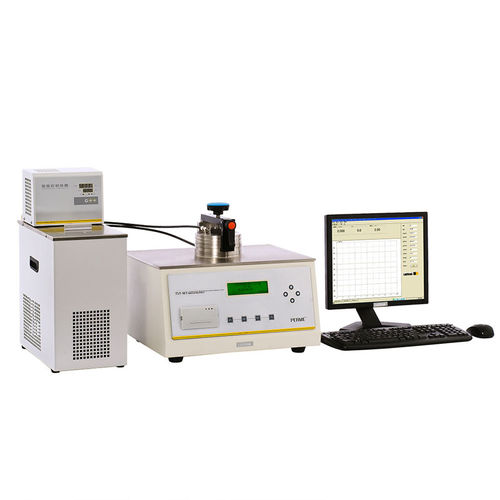

Water vapor permeability tester TSY-W3

for coatingR&D

TSY-W3 Water Vapor Permeability Tester is a basic model to measure water vapor transmission rate of barrier materials based on electronical sensor method Applications -- plastic films, composite films, high barrier materials, back-sheets, sheeting, aluminum foils, waterproof materials, coating Standards -- ISO 15106-3, GB/T 21529, DIN 53122-2, YBB 00092003 Advantage -- Wide range and high-precision of automatic temperature control to support combinations of non-standard test conditions -- Reference film for fast calibration -- Economy and Easy to use -- Cutomization available Parameters -- Test Range: 0.01 ~ 1000 g/m2·24h -- Number of Specimen: 1 -- Resolution: 0.1ppm -- Temperature: 5°C ~ 95°C -- Humidity: 0%RH, 2%RH ~ 98.5%RH, 100%RH (standard is 90%RH)
