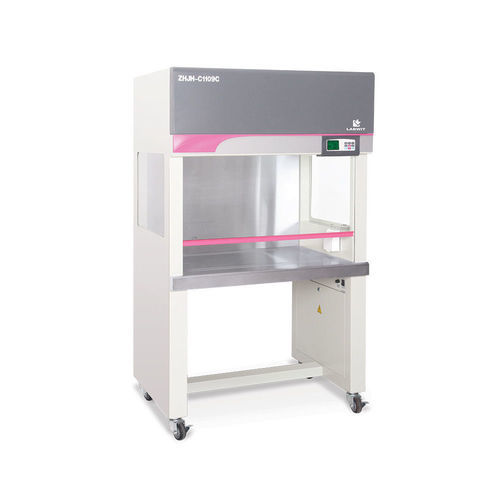

Clean bench for the pharmaceutical industry ZHJH-C series

for research laboratoriesfor clean roomslaboratory

Overview
ZHJH series laminar flow clean benches provide a particle- and bacteria-controlled workspace for laboratory, inspection, manufacturing and pharmaceutical procedures under ISO 5 (Fed Std 209E Class 100) conditions. Units are available in vertical and horizontal flow configurations, multiple widths and single- or double-sided work areas. An integrated automatic HEPA integrity test (Self Validation Test) verifies filter integrity before operation.

Operation principle
Room air is drawn through a top pre-filter to remove large particles, then passed through a HEPA filter. Filtered air is delivered as a uniform laminar flow over the work area (vertical or horizontal depending on model), creating positive pressure that protects the product from airborne contamination and minimizes cross-contamination.

Key features

• Automatic HEPA filter integrity test with alarm (Self Validation Test) before each start-up.
• LCD display showing airflow speed, differential pressure, flow volume and HEPA status.
• Pre-filter to extend HEPA service life.
• Quiet stepless adjustable-speed internal blower for stable air velocity (0.3–0.6 m/s).
• Glare-free fluorescent illumination (≥ 300 Lx) and standard quartz UV sterilization.
• Operation modes: automatic and manual.
• Stainless steel work surface, glass side windows and front sash for access and visibility.
• Combined base stand with castors and an additional power outlet as standard.

Technical data
Models: ZHJH-C1109C / ZHJH-C1112C / ZHJH-C1115C / ZHJH-C1118C / ZHJH-C1209C / ZHJH-C1214C / ZHJH-C2109C / ZHJH-C2112C
Airflow Mode: Vertical Flow / Vertical Flow / Vertical Flow / Vertical Flow / Vertical Flow / Vertical Flow / Horizontal Flow / Horizontal Flow
Work Side: Single / Single / Single / Single / Double / Double / Double / Double
Work Area Width (mm): 900 / 1200 / 1500 / 1800 / 900 / 1400 / 900 / 1200
Filter Monitoring System: Yes. Automatic running before every operation starts.
Filter Efficiency: Fed Std 209E Class100 (ISO 5)
Workroom Air Velocity: 0.3-0.6 m/s (stepless)
Velocity Precision: ±0.05 m/s
Illumination: Fluorescent light ≥ 300 Lx
UV-light: Standard (quartz)
HEPA Differential Pressure: 0-500 Pa
Work Area Dimensions (WxDxH mm): 900 x 625 x 645 / 1200 x 625 x 645 / 1500 x 625 x 645 / 1800 x 625 x 645 / 900 x 650 x 645 / 1400 x 650 x 645 / 900 x 590 x 570 / 1200 x 590 x 570
Exterior Dimensions (WxDxH mm): 1020 x 750 x 1700 / 1320 x 750 x 1700 / 1620 x 750 x 1700 / 1920 x 750 x 1700 / 1020 x 810 x 1700 / 1520 x 810 x 1700 / 1020 x 840 x 1530 / 1320 x 840 x 1530
Packing Dimensions (WxDxH mm): 1100 x 840 x 1890 / 1440 x 840 x 1890 / 1700 x 870 x 1890 / 2000 x 840 x 1890 / 1100 x 930 x 1890 / 1600 x 930 x 1890 / 1140 x 960 x 1700 / 1440 x 960 x 1700
Shipping Volume (m3): 1.75 / 2.24 / 2.70 / 3.18 / 1.93 / 2.81 / 1.86 / 2.35
Net Weight (kg): 153 / 215 / 250 / 310 / 162 / 225 / 170 / 210
Power (W): 380 / 680 / 680 / 680 / 380 / 680 / 380 / 680
Electricity: 220/240 V, 50/60 Hz
Approval: CE, ISO

Order information
ZHJH-C1109C - 90 cm, single-sided, vertical flow clean bench
ZHJH-C1112C - 120 cm, single-sided, vertical flow clean bench
ZHJH-C1115C - 150 cm, single-sided, vertical flow clean bench
ZHJH-C1118C - 180 cm, single-sided, vertical flow clean bench
ZHJH-C1209C - 90 cm, double-sided, vertical flow clean bench
ZHJH-C1214C - 140 cm, double-sided, vertical flow clean bench
ZHJH-C2109C - 90 cm, single-sided, horizontal flow clean bench
ZHJH-C2112C - 120 cm, single-sided, horizontal flow clean bench

Technical specifications

• Series: ZHJH series
• Airflow modes available: Vertical flow and Horizontal flow
• HEPA performance: Fed Std 209E Class100 (ISO 5)
• Air velocity: 0.3-0.6 m/s (stepless), precision ±0.05 m/s
• Integrated automatic HEPA integrity self-validation test and alarm
• Control/display: LCD shows speed, differential pressure, flow volume and HEPA status
• Lighting: Fluorescent lamp ≥ 300 Lx; quartz UV sterilization standard
• Construction: Stainless steel work surface; glass side windows; front sash window
• Mobility/base: Combined base stand with castors
• Electrical: 220/240 V, 50/60 Hz; power 380 W or 680 W depending on model
• Certifications: CE, ISO
